Digital

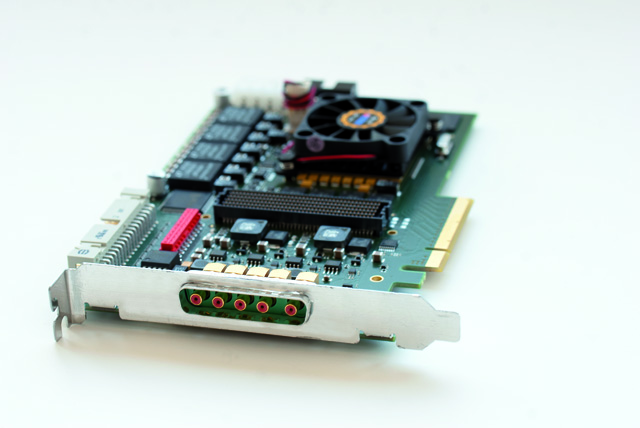

Digital frame grabbers transfer data captured by digital cameras to the PC memory using a variety of camera and PC interfaces.

1Vision offers a wide selection of digital frame grabbers for a variety of interfaces and operating systems. Let us help you find the digital frame grabber that best suits your needs!

Find the digital frame grabber that suits you best!

Using our advanced search engine you can define the following characteristics to locate the digital frame grabber most suited to your needs

Digital Products
Part # Description CATEGORY SUB CATEGORY Interface MANUFACTURER Size Datasheet Sensor_Manufacturer Host_Interface OS_Support Programmable_FPGA F#
Neon-CLB Simplify your industrial, medical, or semiconductor imaging application with BitFlow's Neon-CLB, the easiest to use and most reliable Base/PoCL Camera Link frame grabber available anywhere. The Neon-CLB captures images at up to the camera's highest frame/data rate, with precision image acquisition suitable for the most demanding applications. The Neon-CLB is designed for the OEM that needs the performance of the PCI Express bus, BitFlow's famous industrial quality, and one of the lowest price points in the industry. The Neon-CLB can acquire from ALL Base CL cameras and has enough industrial I/O to handle even the most complicated synchronization tasks. Adding the Neon-CLB to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. The SDK provides high level APIs for sophisticated buffer management and low-level direct access to the board for speedy custom control. If you need the simplest, most reliable, and best performing Base Camera Link and PoCL frame grabber, call BitFlow today to get our OEM-priced Neon-CLB, BitFlow's 4th generation of robust, industrial Camera Link imaging products. Acquisition Digital; Camera Link PoCL Bitflow Download PCIe x4 Win32,Win64 No
Neon-CLD The Neon family is growing. It started with the Neon-CLB, the world's first PoCL frame grabber that provided Base Camera Link acquisition on an OEM priced platform. Now comes the Neon-CLD which supports two cameras on the same low cost x4 PCIe platform. Both cameras can be completely independent with different resolutions, frame rates, triggering modes, etc. Or both cameras can be perfectly synchronized. The Neon-CLD is incredibly flexible and powerful, yet it can substantially lower your system cost. Not only is the Neon-CLD very aggressively priced, but there are additional savings from connecting two cameras to one frame grabber. Adding the Neon-CLD to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. Develop your application using our sophisticated buffer management APIs, or download our free drivers, available for most 3rd party machine vision packages. The Neon-CLD is software compatible with the single camera Neon-CLB, thus making the number of cameras in a system a manufacturing time decision. If you need the simplest, most reliable, and best performing dual Base Camera Link/PoCL frame grabber, call BitFlow today to get our Neon-CLD, BitFlow's 4th generation of robust, industrial CL imaging products. Acquisition Digital; Camera Link PoCL Bitflow Download PCIe x4 Win32,Win64 No
Neon-CLQ The Neon family has grown again. It started with the Neon-CLB, the world's first PoCL frame grabber that provided Base Camera Link acquisition on an OEM priced platform. Next came the Neon-CLD which supports two cameras on the same low cost x4 PCIe platform. The newest member, the Neon-CLQ, supports capture from four cameras simultaneously. All cameras can be run independently with different resolutions, frame rates, triggering modes, etc. Or all cameras can be perfectly synchronized. The Neon-CLQ is incredibly flexible and powerful, yet it can substantially lower your system cost. The Neon-CLQ only requires a single PCIe slot, yet provides four camera interfaces plus I/O. This means the Neon-CLQ hits the highest density of cameras per slot of any frame grabber on the market, while bringing the cost per camera down to unprecedented lows. At this price per per camera, the Neon-CLQ can compete with main stream network cameras, while still providing all the robust industrial features expected when using a frame grabber. Adding the Neon-CLQ to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. Develop your application using our sophisticated buffer management APIs, or download our free drivers, available for most 3rd party machine vision packages. The Neon-CLQ is software compatible with the single camera Neon-CLB, thus making the number of cameras in a system a manufacturing time decision. If you need the simplest, most reliable, and best performing quad Base Camera Link/PoCL frame grabber, call BitFlow today to get our Neon-CLQ, BitFlow's 4th generation of robust, industrial CL imaging products. Acquisition Digital; Camera Link PoCL Bitflow Download PCIe x4 Win32,Win64 No
R3-PMC-CL23 Acquisition Digital; Camera Link Bitflow Download PMC 32-Bit/33 MHz Win32 No
Me4-AS1PCL microEnable IV AS1-PoCL focuses on robust image acquisition with one Camera Link BASE camera and is the ideal industrial solution for price-sensitive systems with no technical compromises. Single channel, Base format frame grabber PoCL SafePower Broad camera support No camera file needed Image Enhancement by On-Board Noise Filter Camera Simulator Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Robust and industrial FPGA Technology Acquisition Digital; Camera Link PoCL Silicon Software Download PCIe x1 Win32,Win64,Linux32,Linux64 No
mE4-AD1-CL microEnable IV AD1-CL focuses on robust image acquisition with cameras for Camera Link BASE, DualBASE and MEDIUM and is the ideal industrial solution for entry in a robust industrial Machine Vision standard. Base to Medium incl DualBase format frame grabber High industrial compliance Broad camera support No camera file needed Image Enhancement by On-Board Noise Filter Camera Simulator Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Robust and industrial FPGA Technology Acquisition Digital; Camera Link PoCL Silicon Software Download PCIe x1 Win32,Win64,Linux32,Linux64 No
Me4-AD1mPCL Acquisition Digital; CamLink PoCL Mini Silicon Software Download PCIe x1 Win32,Win64,Linux32,Linux64 No
mE4-AD4-CL microEnable IV AD4-CL focuses on fast image acquisition with all Camera Link cameras and enables with DMA900 technology advanced applications with the robust industrial Machine Vision standard. All formats of Camera Link standard BayerHQe Quality (5x5) Image Enhancement by On-Board Noise Filter Shading Correction (Offset and Gain) DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Camera Simulator Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Robust and industrial FPGA Technology Acquisition Digital; Camera Link Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 No
mE4-AQ-4GE microEnable IV AQ4-GE focuses on fast image acquisition with up to 4*Gige Vision cameras and offers with DMA900 technology and Machine Vision SDK a professional access to GEV standard. Lowest CPU load even in multi-device mode Industrial and stable multi-camera support Ease-of-use configuration software Professional Machine Vision SDK support DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Professional GigE Vision solution Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Up to 100m cable length Acquisition Digital; GigE Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 No
mE4-AQ-4GPE microEnable IV AQ4-GPoE focuses on fast image acquisition with up to 4*Gige Vision cameras with „Power over“ and offers with DMA900 technology and Machine Vision SDK a professional access to GEV standard. Lowest CPU load even in multi-device mode Industrial and stable multi-camera support Ease-of-use configuration software Professional Machine Vision SDK support DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Professional GigE Vision solution Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Power over GigabitEthernet Acquisition Digital; GigE-PoE Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 No
mE4-VD1-CL microEnable IV VD1-CL focuses on image processing with all Camera Link cameras and offers an entry in customized Machine Vision applications with the robust industrial Machine Vision standard. All formats of Camera Link standard Suitable for high data input despite of PCIe x1 Intelligent programming solution Multi-device usage PCIe x1 for small systems Camera Simulator Broad support of Third-party software interfaces Versatile application and industry usage Easy programmable Vision processor for individual realtime funtionality Robust and industrial FPGA Technology Acquisition Digital; Camera Link Silicon Software Download PCIe x1 Win32,Win64,Linux32,Linux64 Yes
mE4-VD4-CL microEnable IV VD4-CL focuses on fast image processing with all Camera Link cameras and enables with DMA900 technology and VisualApplets advanced customized applications with the robust industrial Machine Vision standard. All formats of Camera Link standard including non-Standard formats** BayerHQe Quality (5x5) Image Enhancement by On-Board Noise Filter Shading Correction (Offset and Gain) DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Camera Simulator Broad support of Third-party software interfaces Versatile application and industry usage Easy programmable Vision processor for individual realtime funtionality Robust and industrial FPGA Technology Acquisition Digital; Camera Link Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 Yes
mE4-VQ-4GE microEnable IV VQ4-GE focuses on fast image processing with up to 4*Gige Vision cameras and offers with DMA900 technology and Machine Vision SDK a professional and customized access to GEV standard. Lowest CPU load even in multi-device mode Industrial and stable multi-camera support Ease-of-use configuration software Professional Machine Vision SDK support DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Professional GigE Vision solution Broad support of Third-party software interfaces Versatile application and industry usage Easy programmable Vision processor for individual realtime funtionality Up to 100m cable length Acquisition Digital; GigE Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 Yes
mE4-VQ-4GPE microEnable IV VQ4-GpoE focuses on fast image processing with up to 4*Gige Vision cameras with „Power over“ and offers with DMA900 technology and Machine Vision SDK a professional and customized access to GEV standard. Lowest CPU load even in multi-device mode Industrial and stable multi-camera support Ease-of-use configuration software Professional Machine Vision SDK support DMA900 / up to 900 MB/s PCIe Data bandwidth (PCIe x4) Professional GigE Vision solution Broad support of Third-party software interfaces Versatile application and industry usage Easy programmable Vision processor for individual realtime funtionality Power over GigabitEthernet Acquisition Digital; GigE Silicon Software Download PCIe x4 Win32,Win64,Linux32,Linux64 Yes
XtremeRGB-Ex1 Acquisition Digital; HDMI/ DVI/ RGB/ YPbPr EMS Download PCIe x4 Win32,Win64 No
XtremeRGB-Ex2+ Acquisition Digital; 2x HDMI/ DVI/ RGB/ YPbPr EMS Download PCIe x4 Win32,Win64 No
XtremeRGB-Ex4+ Acquisition Digital; 4x PAL/NTSC/S-video and 1 x Ch. HDMI/DVI/VGA/HD EMS Download PCIe x4 Win32,Win64 No
XtremeSDI-2 Acquisition Digital; 3G/ HD/ SD-SDI EMS Download PCIe x4 Win32,Win64 No
ME5-AQ8-CXP6D microEnable 5 ironman AQ8-CXP6D focuses on high-speed image acquisition with up to 4*CoaXPress cameras and offers with DMA3600 technology an ultimate access to advanced Machine Vision applications. Support of fastest CoaXPress cameras Easy-to-use configuration software Highest performance image acquisition Industrial multi-device, multi-camera support DMA3600 / up to 3,6 GB/s PCIe Data bandwidth (PCIe x8 Gen2) Hot pluggable Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Power over CoaXPress Acquisition Digital; CoaXPress Silicon Software Download PCIe x8 Win32,Win64,Linux32,Linux64 No
ME5-VQ8-CXP6D microEnable 5 ironman VQ8-CXP6D focuses on high-speed image processing with up to 4*CoaXPress cameras and offers with DMA3600 technology an ultimate access to advanced Machine Vision applications. Support of fastest CoaXPress cameras Easy-to-use configuration software Highest performance image processing Industrial multi-device, multi-camera support DMA3600 / up to 3,6 GB/s PCIe Data bandwidth (PCIe x8 Gen2) Hot pluggable Broad support of Third-party software interfaces Versatile application and industry usage Custom FPGA programming with VisualApplets supporting Xilinx Virtex FPGAs Power over CoaXPress Acquisition Digital; CoaXPress Silicon Software Download PCIe x8 Win32,Win64,Linux32,Linux64 Yes
XtremeDVI-DualLink Acquisition Digital; Dual-Link DVI/HD-DVI EMS Download PCIe x4 Win32,Win64 No
XtremeRGB-II PCI-X Acquisition Digital; 2x HDMI/DVI/VGA/RGB & EMS Download PCI Win32,Win64 No
Cyton CXP4

CoaXPress (CXP) is a simple, yet powerful, standard for moving high speed serial data from a camera to a frame grabber. Video is captured at speeds of up to 6.25 Gigabits/Second (Gb/S). Simultaneously, control commands and triggers can be sent to the camera 20 Mb/S (with a trigger accuracy of +/- 2 nanoseconds). Up to 13 W of power can also supplied to the camera. All this happens over a single piece of industry standard 75 Ohm coaxial cable. Multiple CXP links can be aggregated to support higher data rates (e.g. four links provide 25 Gb/S of data). The CXP standard opens the door to applications where cable cost, routing requirements and long distances have prevented the move to high resolution, high speed digital cameras. In many cases, existing coaxial infrastructure can be repurposed for CXP with very low installation costs.

Acquisition Digital; CoaXPress Bitflow Download PCIe x8 Win32,Win64,Linux32,Linux64 No
ME5-AD8PCL microEnable 5 ironman AD8-PoCL focuses on high-speed image acquisition with Camera Link cameras and offers with DMA3600 technology and color pre-pocessing an ultimate access to advanced Machine Vision color applications. Camera Link Full/Deca format standard Professional high quality color support Onboard color reconstruction Industrial multi-device, multi-camera support DMA3600 / up to 3,6 GB/s PCIe Data bandwidth (PCIe x8 Gen2) Support of line and area scan color cameras Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series PoCL SafePower Acquisition Digital; Camera Link PoCL Silicon Software Download PCIe x8 Win32,Win64,Linux32,Linux64 Yes
ME5-VD8PCL microEnable 5 ironman VD8-PoCL focuses on high-speed image processing with Camera Link cameras and offers with DMA3600 technology and color pre-pocessing an ultimate access to advanced Machine Vision color applications. Camera Link Full/Deca format standard including non-Standard formats** Professional high quality color support Onboard color reconstruction Industrial multi-device, multi-camera support DMA3600 / up to 3,6 GB/s PCIe Data bandwidth (PCIe x8 Gen2) Support of line and area scan color cameras Broad support of Third-party software interfaces Versatile application and industry usage Custom FPGA programming with VisualApplets supporting Xilinx Virtex FPGAs PoCL SafePower Acquisition Digital; Camera Link PoCL Silicon Software Download PCIe x8 Win32,Win64,Linux32,Linux64 Yes
AXN-PC2-CL-2E BitFlow has been making Camera Link frame grabbers since 1999. With each successive generation of frame grabbers, BitFlow has improved the quality, flexibility and robustness of their interfaces. Meanwhile, much has changed on the backend; PCI to PCIe, Gen 1 to Gen 2, etc. Also the Camera Link Specification had been continuously evolving: 80-bit (10-tap) mode was added, Power over Camera Link (PoCL), new connectors, new tap formats. Even though the specification has been around a long time, it is still one of the simplest, efficient and least expensive ways to get camera data into a computer. It also benefits from 100s of thousands of pieces of CL equipment sold worldwide. BitFlow has been on top of all these changes and has continuously improved and updated their Camera Link frame grabbers. The Axion-CL is the culmination of all of these improvements, the most powerful CL frame grabber BitFlow has ever manufactured. The Axion-CL also benefits from other products in BitFlow's line up. The Axion-CL uses the Cyton-CXP's backend: the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers. Acquisition Digital; Camera Link PoCL Bitflow Download PCIe x4 Win32,Win64 No
AXN-PC2-CL-1E BitFlow has been making Camera Link frame grabbers since 1999. With each successive generation of frame grabbers, BitFlow has improved the quality, flexibility and robustness of their interfaces. Meanwhile, much has changed on the backend; PCI to PCIe, Gen 1 to Gen 2, etc. Also the Camera Link Specification had been continuously evolving: 80-bit (10-tap) mode was added, Power over Camera Link (PoCL), new connectors, new tap formats. Even though the specification has been around a long time, it is still one of the simplest, efficient and least expensive ways to get camera data into a computer. It also benefits from 100s of thousands of pieces of CL equipment sold worldwide. BitFlow has been on top of all these changes and has continuously improved and updated their Camera Link frame grabbers. The Axion-CL is the culmination of all of these improvements, the most powerful CL frame grabber BitFlow has ever manufactured. The Axion-CL also benefits from other products in BitFlow's line up. The Axion-CL uses the Cyton-CXP's backend: the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers. Acquisition Digital; Camera Link PoCL Bitflow Download PCIe x4 Win32,Win64 No
ME5-ACL microEnable 5 marathon ACL focuses on high-speed image acquisition for all Camera Link compliant cameras, and offers with DMA1800 technology an powerful access to advanced Machine Vision applications. All formats of Camera Link standard Support of long cable length Onboard image preprocessing functions Industrial multi-device, multi-camera support DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Supports opto-decoupled signals via front I/O Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series PoCL SafePower Acquisition Digital; Camera Link Silicon Software Download PCIe x4 Win7,Win8,Linux32,Linux64 No
ME5-VCL microEnable 5 marathon VCL focuses on high-speed image processing for all Camera Link compliant cameras, and offers with DMA1800 technology an powerful access to advanced Machine Vision applications. All formats of Camera Link standard including non-Standard formats** Support of long cable length Onboard image preprocessing functions Industrial multi-device, multi-camera support DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Supports opto-decoupled signals via front I/O Broad support of Third-party software interfaces Versatile application and industry usage Custom FPGA programming with VisualApplets supporting Xilinx Kintex FPGAs PoCL SafePower Acquisition Digital; Camera Link Silicon Software Download PCIe x4 Win7,Win8,Linux32,Linux64 Yes
ME5-ACX-QP microEnable 5 marathon ACX-QP focuses on high-speed image acquisition with up to 4*CoaXPress cameras and offers with DMA1800 technology an powerful access to advanced Machine Vision applications. Support of fastest CoaXPress camera input Easy-to-use configuration software High performance image acquisition Industrial multi-device, multi-camera support DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Supports opto-decoupled signals via front I/O Broad support of Third-party software interfaces Versatile application and industry usage Flexible and extensible model series Power over CoaXPress Acquisition Digital; CoaXPress Silicon Software Download PCIe x4 Win7,Win8,Linux32,Linux64 No
ME5-AF2 microEnable 5 marathon AF2 focuses on high-speed image acquisition with up to 2*Camera Link HS cameras and offers with DMA1800 technology and optical connections an powerful access to special Machine Vision applications. First Camera Link HS F2 Frame grabber with fiber optics cable support Dual 1200 MB/s F2 fiber optic 300 meter distance interface (SFP connectors) Support of Area and Line Scan cameras Topologies: Multi-Camera/Single-frame grabber and Single-Camera/Multi-Frame grabber DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Opto-isolated front GPIO from 4,5 – 28V, TTL Outputs, RS 485 interface Internal GPIO – interface with support for ad-on GPIO-Boards (requires additional slot) 100% compliant with Silicon Software SDK und GUI control and services tools Flexible and extensible model series IP Core available from AIA ensuring interoperability and short development times Acquisition Digital; Camera Link HS Silicon Software Download PCIe x4 Win7,Win8,Linux32,Linux64 No
ME5-VF2 microEnable 5 marathon VF2 focuses on high-speed image processing with up to 2*Camera Link HS cameras and offers with DMA1800 technology and optical connections an powerful access to special customized Machine Vision applications. First Camera Link HS F2 Frame grabber with fiber optics cable support Dual 1200 MB/s F2 fiber optic 300 meter distance interface (SFP connectors) Support of Area and Line Scan cameras Topologies: Multi-Camera/Single-frame grabber and Single-Camera/Multi-Frame grabber DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Opto-isolated front GPIO from 4,5 – 28V, TTL Outputs, RS 485 interface Internal GPIO – interface with support for ad-on GPIO-Boards (requires additional slot) 100% compliant with Silicon Software SDK und GUI control and services tools Custom FPGA programming with VisualApplets supporting Xilinx Kintex FPGAs IP Core available from AIA ensuring interoperability and short development times Acquisition Digital; Camera Link HS Silicon Software Download PCIe x4 Win7,Win8,Linux32,Linux64 Yes
AON-PC2-CXP1

The Aon-CXP is low cost single link CoaXPress frame grabber. While it looks tiny, it has all the power of its big brother, the Cyton. It supports CXP camera speeds up to 6.25 Gb/S. The technology that Machine Vision components are built on are advancing rapidly in performance while size and costs are plummeting. CoaXPress cameras, which traditionally were power hungry, large, and expensive, are now small, cool, and affordable. Single link cameras are coming out that are 29mm cubes. While this sounds tiny, they can still receive 6.25 Gb/S worth of data over the link, almost twice the real world data rate of the USB3 Vision standard and significantly quicker than the latest GigE Vision data rates. This means you can get 2 MP images at 300 FPS! The Aon CXP has been designed for this low cost/high-performance market. A small foot print single link CXP camera mated with the Aon-CXP can provide all the convenience of a GigE Vision or USB3 Vision camera system. It can compete on price; can exceed the cable lengths in many cases; and can provide a host of Machine Vision features missing from GigE Vision or USB3 Vision camera systems (triggers, encoders, strobe, waveform generators, quadrature encoder support, etc.). Furthermore, because of the Aon's advanced DMA engine, no CPU resources are used in moving images to host memory. One of the biggest advantages of buying a frame grabber over a GigE Vision or USB3 Vision camera is that all of the hardware and software components of the capture system are sourced from one manufacturer. It is not a bunch of separate blocks from different manufacturers (including Intel and Microsoft). BitFlow wrote every line of software and firmware and designed all their own hardware, which means if you have a problem we can support you. If the problem is on our side, we can fix it ourselves and get you a solution in a short amount of time.

Acquisition Digital; CoaXPress Bitflow Download PCIe x2 Win32,Win64,Linux32,Linux64 No
CYT-PC2-CXP2

CoaXPress (CXP) is a simple yet powerful standard for moving high speed serial data from a camera to a frame grabber. Video is captured at speeds of up to 6.25 Gigabits/Second (Gb/S). Control commands and triggers can be sent simultaneously to the camera at rates up to 20 Mb/S (with a trigger accuracy of +/- 2 nanoseconds). Up to 13 W of power can also supplied to the camera. All of this happens over a single piece of industry standard 75 Ohm coaxial cable. Multiple CXP links can be aggregated to support higher data rates (e.g. four links provide 25 Gb/S of data). The CXP standard opens the door to applications where cable cost, routing requirements, and long distances have prevented the move to high resolution, high speed digital cameras. In many cases, existing coaxial infrastructure can be repurposed for CXP with very low installation costs.

Acquisition Digital; CoaXPress Bitflow Download PCIe x8 Win32,Win64,Linux32,Linux64 No
XtremeDV-HD1+

The XtremeDV-HD1+ is a x4 lane PCI Express capture card providing up to 800MB/s bandwidth from the capture engine. The XtremeDV-HD1+ has up to 256MB buffer memory, enabling triple buffering for all video modes for tear free play back. It can also capture digital video for progressive and interlaced modes up to 4096 x 4096 resolutions to a maximum of 165 MHz pixel clock for DVI and 170 MHz for Analog RGB. This card provides HDMI audio capture* and streaming from DVI Channel, as well as balanced and unbalanced analog audio capture.

Acquisition Digital; HDMI/ DVI/ RGB/ YPbPr EMS Download PCIe x4 Win, Linux No
XtremeDV-HD2+

The XtremeDV-HD2+ is a 4 lane PCI Express capture card with three video capture inputs - two supporting HD capture and a third supporting SD composite video, these three independent video channels can be captured simultaneously. The XtremeDV-HD2+ also adds multiple channels of audio capture, which can be synchronised in software using time stamping with all video capture channels.

Acquisition Digital; HDMI/ DVI/ RGB/ YPbPr EMS Download PCIe x4 Win, Linux No
XtremeDV-HD4

 The XtremeDV-HD4 is a high end, four channel, high definition video capture card delivering high performance and flexibility in demanding environments.  The XtremeDV-HD4 has four independent video capture channels, supporting high definition capture and analogue video, with unified Windows and Linux driver support.  The signals are input on four DVI-I connectors and can support HDMI, DVI, VGA and analogue Component (YPbPr) at all resolutions up to 4096 x 4096, at 165 MHz Pixel Clock (digital modes) or 170 Msps in analogue modes.  The XtremeDV-HD4 captures all four video channels simultaneously and triple buffers them into onboard storage for tear free video, alongside an audio stream that can be selected from four of the HDMI audio ports. This data can then be processed and copied using DMA transfers to the host system for display, storage or streaming.

Acquisition Digital; HDMI/ DVI/ RGB/ YPbPr EMS Download PCIe x4 Win, Linux No
XtremeDV-HD4+

 A wide range of applications demand multiple channels of video capture from a single card. Markets include advanced medical and machine vision capture, military applications and security/ surveillance systems. Suitable for these markets and others, the XtremeDV-HD4+ audio video capture card provides an outstanding, powerful solution for multiple HDMI or DVI video capture with support for HDCP. The XtremeDV-HD4+ has four channels of HDMI 1.4, two supporting 297MHz (3840x2160 at 30 fps) and two supporting 165 MHz (1920x1080 at 60 fps), all operating independently of each other. This enables four separate four video sources to be captured and controlled simultaneously. The card also has embedded audio support across all four channels. The XtremeDV-HD4+ is shipped with adapter cables for either HDMI or DVI.

Acquisition Digital; HDMI/ DVI EMS Download PCIe x8 Win, Linux No
XtremeDV-DP2

The professional AV market has begun to adopt 4K UHD technologies, with integrators and system builders demanding higher performance and greater resolutions in the video that they are working with. The EMS XtremeDV-DP2 offers video professionals the ability to simultaneously capture multiple 4K, Ultra High Definition, video feeds each at 60 frames per second. Developed as part of the XtremeDV family of capture cards, the Vision-SC-DP2 offers unmatched capture performance and reliability.

Acquisition Digital; DisplayPort EMS Download PCIe x8 win No
XtremeDV-SDI

A capture card with three independent channels of video capture for 3G SDI, DVI and Composite video, with full analogue and digital support. The XtremeDV-SDI is a four lane PCI Express card with three video capture inputs - two supporting HD capture and a third supporting SD composite video, these three independent video channels can be captured simultaneously. The XtremeDV-SDI also adds multiple channels of audio capture, which can be synchronised in software using timestamping with all video capture channels.The half length full height card features a full mechanical 16 lane connector with notches which will enable it to fit four, eight and 16 lane motherboard connectors. The XtremeDV-SDI also adds embedded audio capture from SDI signal, which can be synchronised with the respective video channel. This card provides balanced and unbalanced analogue capture, through an optional audio module. This capture card provides a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing.

Acquisition Digital; HDMI/ DVI/ RGB/ YPbPr/SD-SDI/ HD-SDI/ 3G-SDI EMS Download PCIe x4 Win, Linux No
Cyton CXP2

CoaXPress (CXP) is a simple, yet powerful, standard for moving high speed serial data from a camera to a frame grabber. Video is captured at speeds of up to 6.25 Gigabits/Second (Gb/S). Simultaneously, control commands and triggers can be sent to the camera 20 Mb/S (with a trigger accuracy of +/- 2 nanoseconds). Up to 13 W of power can also supplied to the camera. All this happens over a single piece of industry standard 75 Ohm coaxial cable. Multiple CXP links can be aggregated to support higher data rates (e.g. four links provide 25 Gb/S of data). The CXP standard opens the door to applications where cable cost, routing requirements and long distances have prevented the move to high resolution, high speed digital cameras. In many cases, existing coaxial infrastructure can be repurposed for CXP with very low installation costs.

Acquisition Digital; CoaXPress Bitflow Download PCIe x8 Win32,Win64,Linux32,Linux64 No
