IC 3D Stereo 3D measurement made easy and flexible

IC 3D is an end-user software for the capture of 3D data produced by The Imaging Source's stereo camera system. Unique in its flexibility, this stereo camera system can be used with a variety of industrial cameras from The Imaging Source and can be easily adjusted to new working distances and depths of field through the modification of camera distances and angles. The IC 3D software offers a convenient user interface for system calibration and the capture and visualization of 3D data.

Key features

  • Compatible with a variety of industrial cameras from The Imaging Source
  • Easily adaptable to new working distances and volumes
  • In systems with existing GPU, GPU-accelerated capture of 3D data
  • Easy calibration
  • Rapid visualization of depth cards and point cloudsCompatible with structured light sources for low-contrast surfaces

Hardware

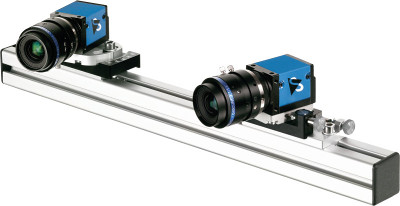

The IC 3D stereo camera system consists of two compatible industrial cameras, which are selected based on application requirements and mounted to a stable track. This track allows for rapid adjustments to camera distances and angles to realize various working distances and measurement volumes.


Calibration
The IC 3D GUI allows for the efficient calibration of the stereo camera system: screenshot_calib_20180414161322.928.png

Visualization
IC 3D visualizes 3D data as depth maps and point clouds and enables easy measurement of distances:

screenshot_all_20180414161330.214.pngscreenshot_depth_pointcloud_20180414160542.864.png
