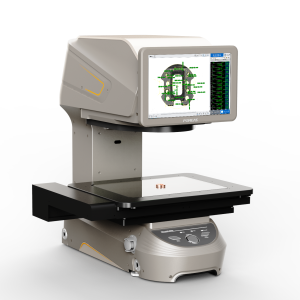

Vision Measurement System

Digital Optical Comparator for High-Speed Image Measurement

This advanced automated optical measurement system delivers fast, highly accurate and repeatable results with minimal operator involvement.

Simply place the part on the stage and press one button - the system automatically detects, measures, and generates results in seconds.

Key Benefits:

One-Click Measurement - Measure multiple dimensions instantly with a single click - no alignment or fixturing required.
High Accuracy & Repeatability - Achieve micron-level precision with consistent results, independent of operator skill.
Fully Automated Operation- Automatic recognition of part position and orientation eliminates human error and reduces setup time.
Smart Data Management - Measurement results are automatically saved, with instant report generation for quality control and traceability.
User-Friendly Interface -Intuitive software allows any operator to perform complex measurements with minimal training.

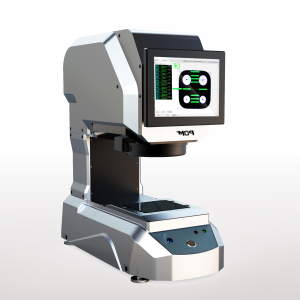

Digital Microscope MICRO IMAGE3
The MICRO IMAGE3 is a digital microscope system that realizes laser focusing for infrared wafer AOI microscopy with lossless infrared penetration. It combines observation, photographing, and […]

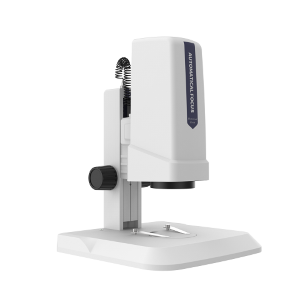

PMS-MFM20
The PMS-MFM20 is a fully integrated microscope system designed for industrial inspection, diagnostics, and QA workflows. It features motorized zoom (0.7× to 4.5×), autofocus, and a 2 MP high-speed sensor […]
IMAGE 3
IMAGE 3 Image Measuring Instrument The system is an optical measurement system equipped with a dual-magnification lens, operating in two different measurement modes: Wide Field of […]

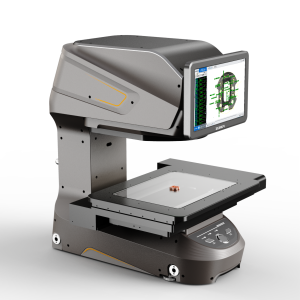

IMAGE 3 PLUS
IMAGE 3 PLUS Image Measuring Instrument The IMAGE 3 PLUS is equipped with a high-precision XY coordinate table, enabling accurate measurement of larger parts through controlled […]

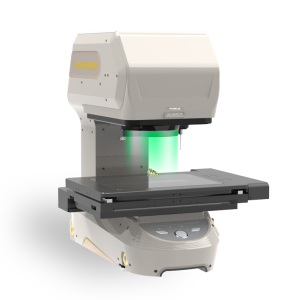

IMAGE 3 PRO
IMAGE 3 PRO Image Measuring Instrument The IMAGE 3 PRO is equipped with a high-precision XY coordinate table, enabling accurate measurement of larger parts through controlled […]
IMAGE 3 PRO-H
IMAGE 3 PRO-H Image Measuring Instrument The IMAGE 3 PRO-H is equipped with a high-precision XY coordinate table, enabling accurate measurement of larger parts through controlled […]
IMAGE3 MAX
IMAGE3 MAX Image Measuring Instrument The IMAGE 3 MAX is equipped with a high-precision XY coordinate table, enabling accurate measurement of larger parts through controlled stage […]
IMAGE 3 MAX2
IMAGE 3 MAX2 Image Measuring Instrument The IMAGE 3 MAX 2 is equipped with a high-precision XY coordinate table, enabling accurate measurement of larger parts through […]

Measurement Capabilities

The system supports a wide range of dimensional measurements, including:

Distance
Diameter & Radius
Angles
Arc (Radian)
Complex geometric features

Applications

Ideal for quality control and inspection in industries such as:

Electronics
Precision machining
Automotive
Metal stamping
Plastic injection molding

Product Parameters
Equipment Model				Image 3	Image 3 Plus	Image 3 Pro	Image 3 Pro H	Image 3 Max	Image 3 Max 2
Imaging Measurement	Image Magnification Ratio			/				21.5-inch Display, Magnification Ratio 9.5X-39X	/
	Measuring Range (mm)	High precision measurement mode(XYZ)		18*18	75118118	75118218	75118218	75104205	75106206
		Wide field of view measurement mode(XYZ)		Φ100	75200200	75200300	75200300	75118223	75125225
	Lens field of view (mm)	High-precision measurement mode		18x18				6.4x4.8	6x6
		Wide field of view measurement mode		Φ100				18.8x14.1	25x25
	Repeat Accuracy (μm)	High-precision measurement mode		±0.5				±0.25	±0.25
		Wide field of view measurement mode		±1				±0.5	±0.5
	Measurement accuracy (μm)	High-precision measurement mode	Connectionless	±2 (range of 20mm×14mm)				±1	±1 (range of 5mm×5mm)
			Connected	/	±(2+0.02L) (range of 113mm×105mm)	±(2+0.02L) (range of 200mm×105mm)		±(1.5+0.02L) (range of 185mm×95mm)
		Wide field of view measurement mode	Connectionless	±4 (range of φ80mm)				±1.5 (range of 20mm×20mm)
			Connected	/	±(4+0.02L) (range of 180mm × 180mm)	±(4+0.02L) (range of 270mm × 180mm)		±(2+0.02L) (range of 200mm×200mm)
Height measurement	Repeatability (μm)			/			±2
	Measurement Accuracy (μm)						±(3.5+L/50) (Zeroing of spectral focus position, L is Z-axis travel stroke, L≦ mm)
	Working Distance(mm)						55
	Range (mm)						±3
Height Sensors	Spectral Confocal Probes			/			8055		8055(optional)
	Spectral Measurement Range (mm)						145x95x75	122x100x75	135x100x75
	Mirror Measurement Angle						±13.6°
	Spot Size (μm)						17
	Linear Accuracy						0.02%F.S.
Instrument weight (kg)				33	45	50	45	33	45
Overall Dimension(LWH)(mm)				625309650	625402650	625510650	625510650	625510695	625510650
