The MICRO IMAGE3 is a digital microscope system that realizes laser focusing for infrared wafer AOI microscopy with lossless infrared penetration. It combines observation, photographing, and measurement in a single unit, and has observation performance that exceeds that of the human eye, allowing for both flat surface and 3D measurements to be taken by simply operating the laser pointer.
Advantages
1. It has a high resolution that matches the 4K image quality, and realizes a fast real-time large depth of field with the support of POMEAS Z-Stack shooting technology;
2. Positioning, focusing, and magnification conversion can be performed with the hand-held controller by placing the target on the platform, enabling intuitive observation of the target’s position;
3. Seamless observation with smooth switching from low magnification 20X to high magnification 8000X.
4. The interface is simple and easy to operate and can be used after a short period of training, so that the measurement results of any person can be consistent.

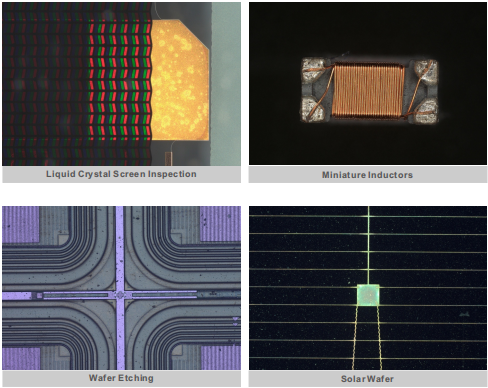

Applications
- 3C Electronics/Mobile Phone/Watch/Ear/Glasses/Charger/Camera
- New Energy Battery/Automobile/Solar Energy
- Chip Manufacturing and Testing
- 5G manufacturing and testing
Product Parameter Table
| Products | Digital Magnification | 1x-8000x |
| Objective Lens Magnification Range | 1x-150x | |
| Maximum Working Distance | 22mm | |
| AMS Functions | Auto Measurement System Function | |
| Integrated Control System | Pms 5-axis Control System | |
| High Precision frames | z-axis Autofocus Distance | 30mm |
| z-axis Maximum Resolution | 0.1µm | |
| z-axis Expandable Maximum Height | 75mm | |
| Ambient Temperature | 10°c-40°c (non-condensing) | |
| Relative Humidity | Less than 80% (no condensation) | |
| Dimensions (mm)/weight | 273(w)x467.1(h)x444(d)/8kg | |
| Digital System | Visible Light Camera Unit 1 | 1 Inch 20 Mega Pixel Image Sensor |
| Shutter Mode | Roll-up Shutter | |
| Visible Light Camera Unit 2 | 2/3 Inch 5 Mega Pixel Image Sensor | |
| Shutter Mode | Global Shutter | |
| Infra-Red Light Camera Unit 1 | 1.25 Inch 4 Mega Pixel Image Sensor | |
| Shutter Mode | Roll-up Shutter | |
| Infra-Red Light Camera Unit 2 | 1/1.4 Inch 5 Mega Pixel Inga as Image Sensor | |
| Motorized Z-axis | Course | 30mm |
| Resolution | 0.1Mm | |
| Repeatability | 1µm | |
| Dimensions (mm)/weight | Module: 60(w)x158(h)x42(d)/1.6kg | |
| Motorized Control Platforms | 2D Image Stitching | |
| 3D Image Stitching | ||
| Course | 100(x)X100(y)mm Standard | |
| Driving Method | Motorized | |
| Corresponding Product Size | 4 Inch,6 Inch,8 Inch,12 Inch | |
| 3D Display function | ||
| 3D Contour Correction Function | ||
| Manual Control Platform | Driving Method | Manually Operated |
| Sizes | 8 Inch | |
| Course | 104(x)X102(y)mm | |
| Lighting Sources | LED | 5V 1a High Brightness LED |
| LED Lifetime | Greater than 20,000 Hours | |
| Color Temperature | 5650k | |
