High-Speed 360° Bottle Inspection
The plug-and-play vision solution for pharmaceutical primary packaging.
Ensure 100% quality control for white plastic bottles with a system designed for precision, speed, and clean-room compliance.
Why In-SPECt?

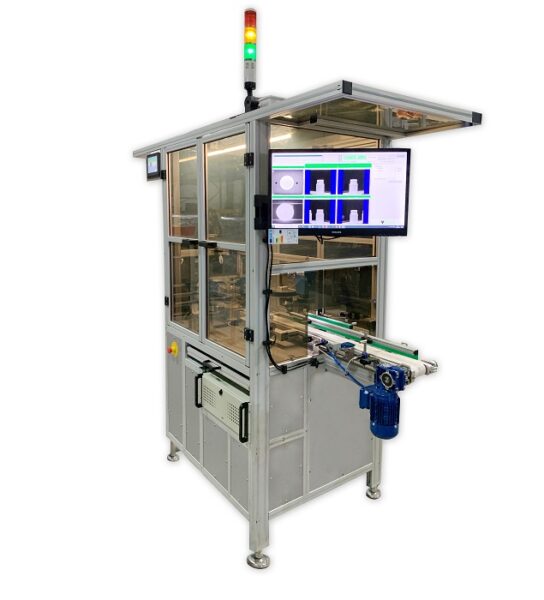

The In-SPECt-6CV1 is engineered specifically for pharmaceutical manufacturers and packaging suppliers. By optimizing hardware and software for white plastic containers, we provide a cost-effective solution that doesn’t compromise on quality.
- Speed: Inspect 9,000 bottles per hour (2.5 per second), with the capability to run faster with additional hardware.
- Precision: AI-powered thread inspection and unique synchronization for lightning-fast accuracy.
- Agility: “Single setup” recipe management makes switching bottle types instant.
- Adjustable: Selecting reduced set of inspection features allows super-fast speed of up to 3 times faster!
What We Detect
Comprehensive Defect Detection
Our multi-angle approach ensures no defect goes unnoticed.
- Top View: Opening diameter, ovality, flash (0.2mm+), and deformation.
- Side Walls: Pigmentation issues, shape deformation, and spots on the body, neck, or threads.
- Bottom View: Marking verification and contamination detection.
- Internal: Top-down illumination detects foreign materials and thin/thick wall variations.
Supported Dimensions:
- Diameter: 30mm – 100mm
- Height: 60mm – 200mm
User-Centric Software
The In-SPECt-6CV1 interface is built for operators and supervisors alike.
- Live Visualization: Real-time image display with defect highlighting overlays.
- Traceability: History view of the last 20 inspected products.
- Security: 3-level access (Operator, Supervisor, Administrator) with password protection.
- Diagnostics: Built-In-Test (BIT) for instant troubleshooting.
Ready to Upgrade Your Production Line?
See the difference 100% in-line inspection makes for your quality assurance.
