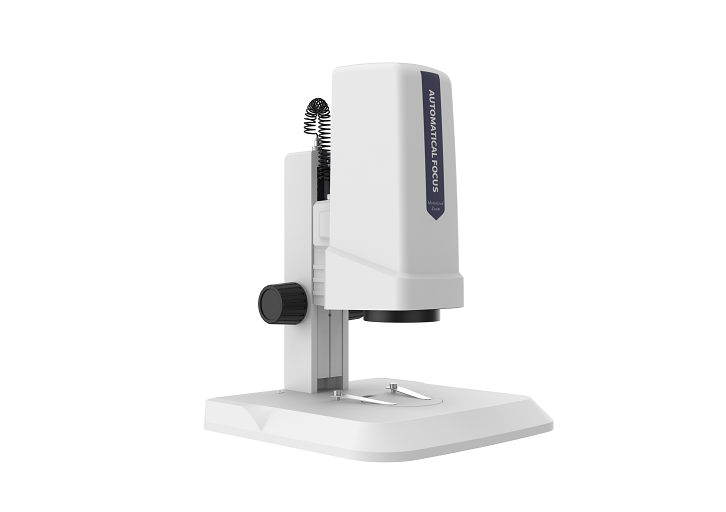

PMS-MFM20

The PMS-MFM20 is a fully integrated microscope system designed for industrial inspection, diagnostics, and QA workflows. It features motorized zoom (0.7× to 4.5×), autofocus, and a 2 MP high-speed sensor capable of capturing 1080p at 60 FPS. Users can operate the system via a USB mouse, controller, or software interface.

Equipped with HDMI, USB 3.0, and LAN outputs, it supports dual display modes and is optimized for ease of use. The system also supports functions like depth fusion, image stitching, and built-in measurement with custom report generation.

Applications:
• Electronics and PCB inspection
• Laboratory diagnostics and QA
• Medical device analysis

Main Parameters

Optical Magnification	0.7×–4.5X
Frame Rate	60fps
Resolution	1920P
Image Output Interface	HDMI&USB/LAN
Focusing	Auto
Zoom Mode	Motorised zoom

Electrical Parameters

Dynamic Range	75dB
Signal-to-noise Ratio	72dB
Analogue To Digital Conversion	12-bit
Video Display	Preview Mode 60 fps@1080P
Exposure Control	Auto Tracking/Manual Dual Mode
White Balance	Adopt instrument lamp D65/D50 light source special colour temperature calibration mode
Data Transfer	HDMI HD output interface, USB3.0 output interface or Gigabit network interface
Storage Media	FAT32 format U disk, maximum support 128G

Optical Parameter

Motorised Zoom Lens	High resolution 0.7×–4.5x continuous zoom lens
Dedicated Lighting Unit	4-zone ring light source, constant colour temperature
Recommended Working Distance	100mm
Global Focus Tracking	Motorised/Manual
Centre Focus Tracking	Motorised/Manual
Spectral Responsiveness	VIS–NIR Visible Range Full Spectral Band Response
Optical Transmission Enhancement Technology	Sensor window adopts multi-layer AR transmittance enhancement technology

Auxiliary Function

Image Flip Function	Horizontal mirroring, vertical mirroring
Crosshair	Multi-colour switching
Language Switching	Support Chinese, English
Initialisation Button	One key reset, back to factory settings
External I/O Trigger	Through external I/O, can be triggered to take pictures, focus and other functions
External Operation Keypad	One key to trigger the photo and other related functions
