Motorized Zoom Lens Controller

(Product ID: LC-1S)

Operate any camera with a motorized zoom lens using the Motorized Zoom Lens Controller.  Ideal for integrated remote surveillance and security systems and long-range surveillance applications like border and port security.  The Motorized Zoom Lens Controller (LC-1S) is a compact controller for motorized zoom lenses. The LC-1S can operate lenses with up to three motors with or without potentiometers as well as auto-iris lenses with DC or Video iris.   The Ethernet connection makes communication much simpler than traditional serial lens controllers and also allows it to be operated over a longer distance than serial devices.

Integrate your lens into your own software using the available API command structure.
This command structure is compatible with Windows, Linux and MacOS.

Features

• Compatible with 99% of the motorized lens tested (motorized and DC/Video Auto-Iris)
• Accurate Zoom, Focus, and Iris (motorized and DC/Video Auto-Iris)
• 10/100Mbps Ethernet interface
• Connect to and manage multiple devices over a local network or wirelessly via AP
• Easy to use software interface or integrate to your system with TCP/IP API commands
• Programmable preset capability to easily store and recall saved positions on the lens

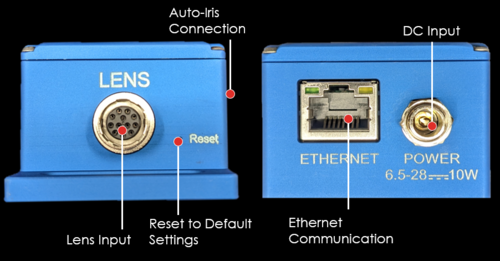

• Hirose locking connector for lens communication (zoom, focus and motorized iris)
• Standard 4 pin EIAJ connector for Auto Iris (DC or Video)

LC-1S 2D Drawing
