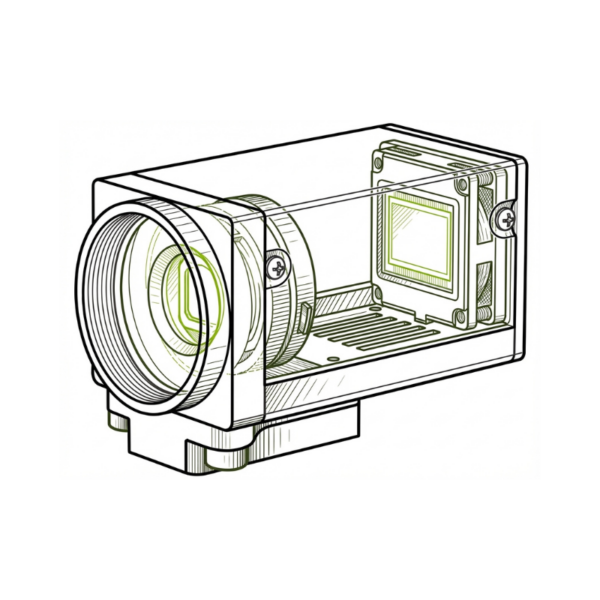

Integrated optics cameras are all-in-one, highly compact area scan cameras with an integrated motorized zoom lens, iris and focus, making them a cost efficient choice.

Integrated optics cameras are all-in-one, highly compact area scan cameras with an integrated motorized zoom lens, iris and focus, making them a cost efficient choice.

1Vision distributes a wide range of integrated optics cameras suitable for applications such as:

Remote learning
Component inspection
Gimbals
Military and security applications (control, lookout, guidance)
Traffic control (ITS)

1Vision can help you find the best integrated optics solution!

Name	Manufacturer	Resolution (MPixel)	Frame rate	Sensor Format	Sensor Type	Interface	hf:tax:pa_resolution-range	hf:tax:pa_frame-rate-range	hf:tax:pa_interface	hf:tax:pa_sensor-type	hf:tax:pa_color-mono	hf:tax:pa_sensor-model
DFK 22AUC03-F	The Imaging Source	0.36	76	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	mt9v024ia7xtm
DFK 33GR0234	The Imaging Source	2.3	50	1.26"	CMOS	GigE	1-5-2-5		gige	cmos	color	ar0234
DFK 39GR0522-Z12	The Imaging Source	5	22	1/2.5"	onsemi	GigE	4-5-7-5		gige	onsemi		ar0522
DFK 39GX265-Z20	The Imaging Source	3.1	36	1/1.8"	CMOS	GigE	2-5-4-5	d-36100	gige	cmos	color	imx265lqr-c

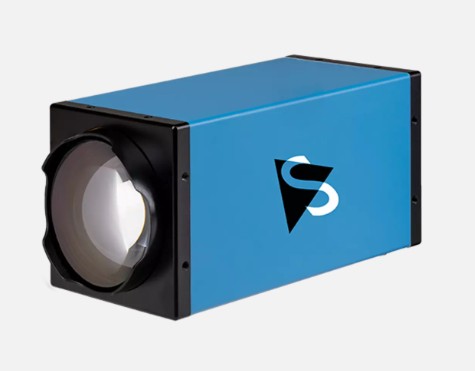

DFK 39GX548-Z20	The Imaging Source	5	24	1/1.8"	CMOS	GigE	4-5-7-5	c-2535	gige	cmos	color	imx548-aaqj
DFK AFU050-L34	The Imaging Source	5	60	1/4"	CMOS	GigE	4-5-7-5	d-36100	gige	cmos	color
DFK AFU130-L53	The Imaging Source	13	1	1/2.5"	CMOS	GigE	12-5-30	a-10	gige	cmos	color
DFK AFU420-L62	The Imaging Source	41.5	7	1/2.5"	CMOS	USB 3.0	30	a-10	usb-3-0	cmos	color
DFK Z12G445	The Imaging Source	1.23	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	color	icx445
DFK Z12GP031	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	color	mt9p031
DFK Z12GX236	The Imaging Source	2.3	36	1/2.8"	CMOS	GigE	1-5-2-5	d-36100	gige	cmos	color	imx236

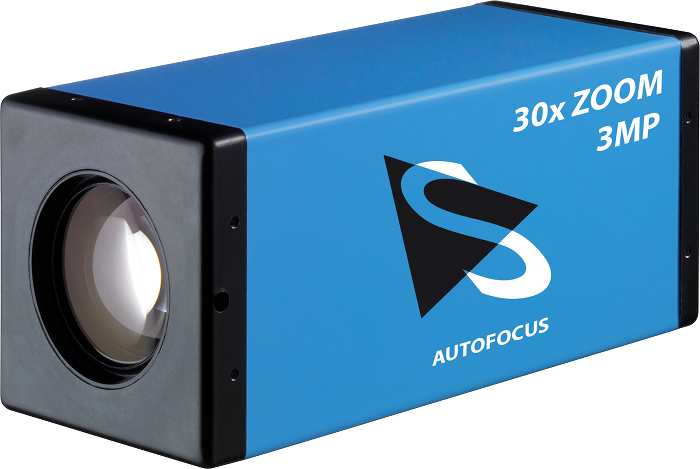

DFK Z30GP031	The Imaging Source	3	22	1/2.5"	CMOS	GigE	2-5-4-5	b-1124	gige	cmos	color	mt9p031

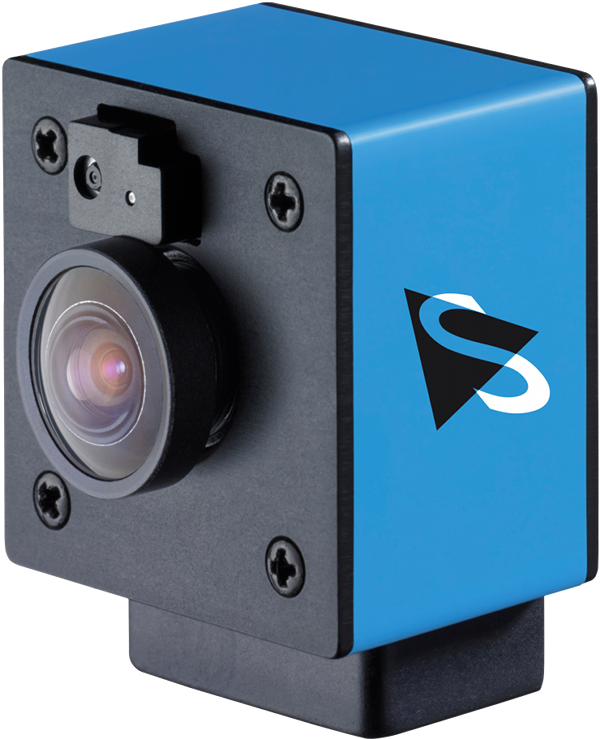

DMK 22AUC03-F	The Imaging Source	0.36	76	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	mt9v024ia7xtm
DMK 39GX265-Z20	The Imaging Source	3.1	36	1/1.8"	CMOS	GigE	2-5-4-5	d-36100	gige	cmos	mono	imx265lqr-c

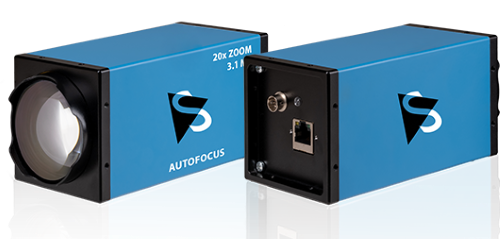

DMK 39GX548-Z20	The Imaging Source	5	24	1/1.8"	CMOS	GigE	4-5-7-5	c-2535	gige	cmos	mono	imx548-aaqj
DMK 72AUC02-F	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono	mt9p031
DMK Z12G445	The Imaging Source	1.23	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	mono	icx445
DMK Z12GP031	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	mono	mt9p031
DMK Z12GX236	The Imaging Source	2.3	36	1/2.8"	CMOS	GigE	1-5-2-5	d-36100	gige	cmos	mono	imx236
DMK Z30GP031	The Imaging Source	3	22	1/2.5"	CMOS	GigE	2-5-4-5	b-1124	gige	cmos	mono	mt9p031
ApM 39UX568-F	The Imaging Source	5	74	1/1.8"	CMOS Pregius	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos-pregius	mono	imx568-aamj-c
ApC 39UX568-F	The Imaging Source	5	74	1/1.8"	CMOS Pregius	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos-pregius	color	sony-imx568-aaqj-c
ApM 39UR0521-F	The Imaging Source	5	60	1/2.5"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	mono	ar0521
ApC 39UR0521-F	The Imaging Source	5	60	1/2.5"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	color	ar0521
ApM 39UR0822-F	The Imaging Source	8.3	45	1/1.8"	CMOS	USB 3.1	7-5-12-5	d-36100	usb-3-1	cmos	mono	ar0822
ApC 39UR0822-F	The Imaging Source	8.3	45	1/1.8"	CMOS	USB 3.1	7-5-12-5	d-36100	usb-3-1	cmos	color	ar0822
ApM 39UR2020-F	The Imaging Source	19.7	19	1/1.8"	CMOS	USB 3.1	12-5-30	b-1124	usb-3-1	cmos	mono	ar2020
ApC 39UR2020-F	The Imaging Source	19.7	19	1/1.8"	CMOS	USB 3.1	12-5-30	b-1124	usb-3-1	cmos	color	ar2020
