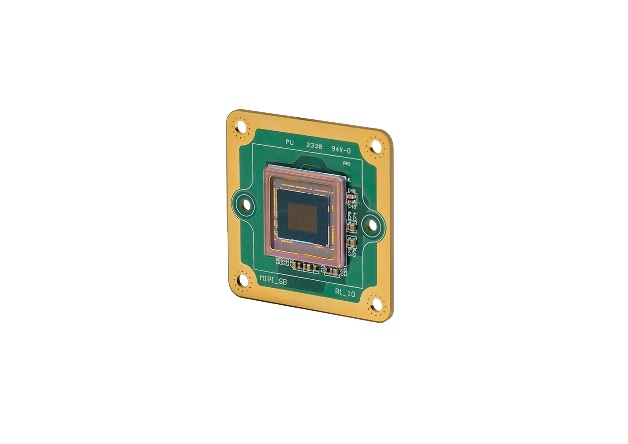

DFM 36SR0234-ML
- 36S Series Color MIPI CSI-2 Camera
- 22-Pin MIPI CSI-2 connector compatible with NVIDIA Orin, NXP i.MX 8M Plus and Raspberry Pi 5
- 1/2.6 inch onsemi CMOS AR0234 Sensor
- 1,920×1,200 (2.3 MP), up to 120 fps
- Pixel Size: H: 3 µm, V: 3 µm
- Sensor Size: 5,8 mm x 3,6 mm
- Sensor Diagonal: 6,8 mm
- Global Shutter
- Trigger Input
- Only 30×30×6 mm
| Weight | 7 g |
|---|---|
| Camera Type | Board Cameras |
| Res Width | 1920 |
| Res Height | 1200 |
| Resolution (MPixel) | |
| Frame rate | |
| Sensor Format | |
| Pixel Width (µ"m) | |
| Pixel Height (µ"m) | |
| Interface | 22-pin FFC connector |
| Sensor Type | |
| Shutter Type | |
| Bit Depth | |
| Manufacturer | The Imaging Source |
| Size | 30×30×6 |
| Sensor Manufacturer | ONSemi |
| Sensor Model | |
| Type | |
| Auto Iris | |
| Mount | |
| Voltage | 3.15V-3.45V |
| Temperature Range | |
| Power | 0.858W |
| Color Mono | |
| Sensor Format Range | |
| Frame Rate Range | |
| Resolution Range |
