Board Cameras - 1Vision

Board cameras are non-housed printed circuit boards that can be embedded in multiple configurations for a wide range of applications. Board cameras are usually small in size, and therefore are well-suited for embedded and space-limited applications such as industrial automation, quality control, surveillance, medicine and more.

1Vision provides a wide variety of board cameras available in a wide range of image sensors and interfaces.
Let us help you find the board camera that best suits your needs!

Name	Manufacturer	Resolution (MPixel)	Frame rate	Sensor Format	Sensor Type	Interface	hf:tax:pa_resolution-range	hf:tax:pa_frame-rate-range	hf:tax:pa_interface	hf:tax:pa_sensor-type	hf:tax:pa_color-mono	hf:tax:pa_sensor-model	hf:tax:pa_res-width
ARTCAM-022MINI-BW-OP	ARTRAY	0.36	10	1/3"	CMOS	USB 2.0	0-0-75	a-10	usb-2-0	cmos	mono	micron	752
ARTCAM-022MINI-OP	ARTRAY	0.36	10	1/3"	CMOS	USB 2.0	0-0-75	a-10	usb-2-0	cmos	color	micron	752
ARTCAM-036MI-BW-OP	ARTRAY	0.36	60	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	micron	752
ARTCAM-036MI-BW-OP-SATA	ARTRAY	0.31	60	1/3"	CMOS	SATA	0-0-75	d-36100	sata	cmos	mono	micron	640
ARTCAM-036MI-OP	ARTRAY	0.36	60	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	micron	752
ARTCAM-036MI-OP-SATA	ARTRAY	0.31	60	1/3"	CMOS	SATA	0-0-75	d-36100	sata	cmos	color	micron	640
ARTCAM-098II-BW -OP	ARTRAY	0.31	30	1/4"	CCD	USB 2.0	0-0-75	c-2535	usb-2-0	ccd	mono		640
ARTCAM-098II-OP	ARTRAY	0.31	30	1/4"	CCD	USB 2.0	0-0-75	c-2535	usb-2-0	ccd	color		640
ARTCAM-130MI-BW-OP	ARTRAY	1.31	15	1/2"	CMOS	USB 2.0	0-75-1-5	b-1124	usb-2-0	cmos	mono	mt9m001	1280
ARTCAM-130MI-OP	ARTRAY	1.31	15	1/2"	CMOS	USB 2.0	0-75-1-5	b-1124	usb-2-0	cmos	color	mt9m001	1280
ARTCAM-150PIII-BW -OP	ARTRAY	1.39	12	1/2"	CCD	USB 2.0	0-75-1-5	b-1124	usb-2-0	ccd	mono	icx205	1360
ARTCAM-150PIII-OP	ARTRAY	1.39	12	1/2"	CCD	USB 2.0	0-75-1-5	b-1124	usb-2-0	ccd	color	icx205	1360
ARTCAM-267KY-BW -OP-SATA	ARTRAY	1.39	12	1/2"	CCD	SATA	0-75-1-5	b-1124	sata	ccd	mono	icx267	1360
ARTCAM-267KY-OP-SATA	ARTRAY	1.39	18	1/2"	CCD	SATA	0-75-1-5	b-1124	sata	ccd	color	icx267	1360
ARTCAM-274KY-BW -OP	ARTRAY	2.01	10	1/1.8"	CCD	USB 2.0	1-5-2-5	a-10	usb-2-0	ccd	mono	icx274	1628
ARTCAM-274KY-OP	ARTRAY	2.01	10	1/1.8"	CCD	USB 2.0	1-5-2-5	a-10	usb-2-0	ccd	color	icx274	1628
ARTCAM-274KY-OP-SATA	ARTRAY	2.01	10	1/1.8"	CCD	SATA	1-5-2-5	a-10	sata	ccd	color	icx274	1628
ARTCAM-300MI-BW-OP	ARTRAY	3	6	1/2"	CMOS	USB 2.0	2-5-4-5	a-10	usb-2-0	cmos	mono		2048
ARTCAM-300MI-BW-OP-SATA	ARTRAY	3	16	1/2"	CMOS	SATA	2-5-4-5	b-1124	sata	cmos	mono		2048
ARTCAM-300MI-OP	ARTRAY	3	6	1/2"	CMOS	USB 2.0	2-5-4-5	a-10	usb-2-0	cmos	color		2048
ARTCAM-300MI-OP-SATA	ARTRAY	3	16	1/2"	CMOS	SATA	2-5-4-5	b-1124	sata	cmos	color		2048
ARTCAM-445KY-BW -OP	ARTRAY	1.23	22	1/3"	CCD	USB 2.0	0-75-1-5	b-1124	usb-2-0	ccd	mono	icx445	1280
ARTCAM-445KY-OP	ARTRAY	1.23	22	1/3"	CCD	USB 2.0	0-75-1-5	b-1124	usb-2-0	ccd	color	icx445	1280
ARTCAM-500PII-OP	ARTRAY	5	3.75	1/2"	CCD	USB 2.0	4-5-7-5	a-10	usb-2-0	ccd	color		2588
ARTCAM-500PII-OP-SATA	ARTRAY	5	3.75	1/2"	CCD	USB 2.0	4-5-7-5	a-10	usb-2-0	ccd	color		2588
ARTCAM-500SS-BW-OP	ARTRAY	5	3.75	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono		2592
ARTCAM-500SS-BW-OP-SATA	ARTRAY	5	10	1/2.5"	CMOS	SATA	4-5-7-5	a-10	sata	cmos	mono		2592
ARTCAM-500SS-OP	ARTRAY	5	3.75	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color		2592
ARTCAM-500SS-OP-SATA	ARTRAY	5	10	1/2.5"	CMOS	SATA	4-5-7-5	a-10	sata	cmos	color		2592
ARTCAM-625KY-BW -OP	ARTRAY	5	2.4	1/2"	CCD	USB 2.0	4-5-7-5	a-10	usb-2-0	ccd	mono	icx625	2456
ARTCAM-625KY-BW -OP-SATA	ARTRAY	5	2.4	1/2"	CCD	SATA	4-5-7-5	a-10	sata	ccd	mono	icx625	2456
ARTCAM-625KY-OP	ARTRAY	5	2.4	1/2"	CCD	USB 2.0	4-5-7-5	a-10	usb-2-0	ccd	color	icx625	2456
ARTCAM-625KY-OP-SATA	ARTRAY	5	2.4	1/2"	CCD	SATA	4-5-7-5	a-10	sata	ccd	color	icx625	2456
ARTCAM-900SS-OP	ARTRAY	9	2.45	1/2.3"	CMOS	USB 2.0	7-5-12-5	a-10	usb-2-0	cmos	color	micron	3488

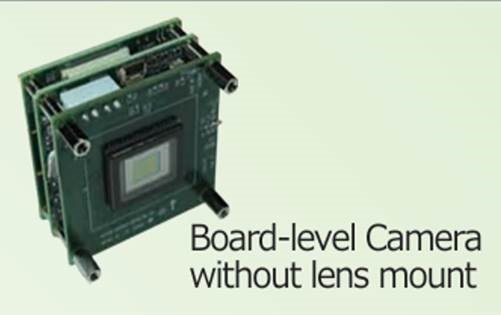

ARTCAM-991SWIR-OP		0.32 MP		1/4"		USB 3.0	0-0-75		usb-3-0				5
DFM 21AF04-ML	The Imaging Source	0.31	60	1/4"	CCD	GigE	0-0-75	d-36100	gige	ccd	color	icx098	640
DFM 21BF04-ML	The Imaging Source	0.31	60	1/4"	CCD	GigE	0-0-75	d-36100	gige	ccd	color	icx098	640
DFM 22BUC03-ML	The Imaging Source	0.36	60	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	mt9v024ia7xtm	744
DFM 24UJ003-ML	The Imaging Source	11	7	1/2.3"	CMOS	GigE	7-5-12-5	a-10	gige	cmos	color	mt9j003	3856
DFM 24UP031-ML	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	color	mt9j003	2592
DFM 25G445-ML	The Imaging Source	1.23	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	color	icx445	1280
DFM 25GP031-ML	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	color	mt9p031	2592

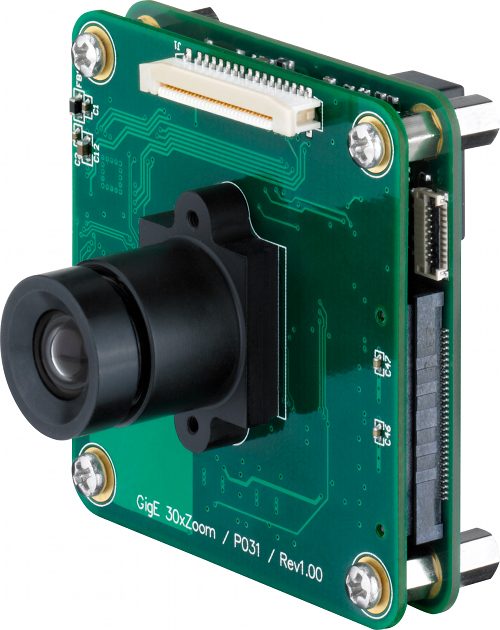

DFM 25GX236-ML	The Imaging Source	2.3	36	1/2.8"	CMOS	GigE	1-5-2-5	d-36100	gige	cmos	color	imx236	1920
DFM 27UJ003-ML	The Imaging Source	11	7	1/2.3"	CMOS	GigE	7-5-12-5	a-10	gige	cmos	mono	mt9j003	3856
DFM 27UR0135-ML	The Imaging Source	1.2	60	1/3"	CMOS	USB 3.0	0-75-1-5	d-36100	usb-3-0	cmos	color	ar0135	1280
DFM 31AF03-ML	The Imaging Source	0.79	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	color	icx204	1024
DFM 31BF03-ML	The Imaging Source	0.79	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	color	icx204	1024
DFM 37UX178-ML	The Imaging Source	6.3	60	1/1.8"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	color	imx178	3072
DFM 37UX226-ML	The Imaging Source	12	30	1/1.7"	CMOS	USB 3.1	0-0-75	c-2535	usb-3-1	cmos	color	imx226	4000
DFM 37UX250-ML	The Imaging Source	5	75	2/3"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	color	imx250lqr	2448
DFM 37UX252-ML	The Imaging Source	3.1	119	1/1.8"	CMOS	USB 3.1	2-5-4-5	e-101200	usb-3-1	cmos	color	imx252lqr	2048
DFM 37UX264-ML	The Imaging Source	5	38	2/3"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	color	imx264lqr	2448
DFM 37UX265-ML	The Imaging Source	3.1	60	1/1.8"	CMOS	USB 3.1	2-5-4-5	d-36100	usb-3-1	cmos	color	imx265lqr	2048
DFM 37UX273-ML	The Imaging Source	1.6	236	1/2.9"	CMOS	USB 3.1	1-5-2-5	f-201750	usb-3-1	cmos	color	imx273	1440
DFM 37UX287-ML	The Imaging Source	0.4	539	1/2.9"	CMOS	USB 3.1	0-0-75	f-201750	usb-3-1	cmos	color	imx287	720
DFM 37UX290-ML	The Imaging Source	2	90	1/2.8"	CMOS	USB 3.1	1-5-2-5	d-36100	usb-3-1	cmos	color	imx290	1920
DFM 42BUC03-ML	The Imaging Source	1.23	25	1/3"	CMOS	USB 2.0	0-75-1-5	c-2535	usb-2-0	cmos	color	mt9m021	1280
DFM 47GR0521	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	color	ar0521	2592
DFM 47GR0521-ML	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	color	ar0521	2592
DFM 47GR0521-MLP	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	color	ar0521	2592
DFM 47GR0521-P	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	color	ar0521	2592
DFM 61BUC02-ML	The Imaging Source	3	10	1/2"	CMOS	GigE	2-5-4-5	a-10	gige	cmos	mono	mt9t031	2048
DFM 72BUC02-ML	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color	mt9p031	2592
DFM 73AUC04-ML	The Imaging Source	5	10	1/4"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color	ov5640	2592
DMM 21AF04-ML	The Imaging Source	0.31	60	1/4"	CCD	GigE	0-0-75	d-36100	gige	ccd	mono	icx098	640
DMM 21BF04-ML	The Imaging Source	0.31	60	1/4"	CCD	GigE	0-0-75	d-36100	gige	ccd	mono	icx098	640
DMM 22BUC03-ML	The Imaging Source	0.36	60	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	mt9v024ia7xtm	744
DMM 24UJ003-ML	The Imaging Source	11	7	1/2.3"	CMOS	GigE	7-5-12-5	a-10	gige	cmos	mono	mt9j003	3856
DMM 24UP031-ML	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	mono	mt9j003	2592
DMM 25G445-ML	The Imaging Source	1.23	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	mono	icx445	1280
DMM 25GP031-ML	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	mono	mt9p031	2592
DMM 25GX236-ML	The Imaging Source	2.3	36	1/2.8"	CMOS	GigE	1-5-2-5	d-36100	gige	cmos	mono	imx236	1920
DMM 27UJ003-ML	The Imaging Source	11	7	1/2.3"	CMOS	GigE	7-5-12-5	a-10	gige	cmos	mono	mt9j003	3856
DMM 27UP031-ML	The Imaging Source	5	15	1/2.5"	CMOS	GigE	4-5-7-5	b-1124	gige	cmos	mono	mt9p031	2592
DMM 27UR0135-ML	The Imaging Source	1.2	60	1/3"	CMOS	USB 3.0	0-75-1-5	d-36100	usb-3-0	cmos	mono	ar0135	1280
DMM 31AF03-ML	The Imaging Source	0.79	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	mono	icx204	1024
DMM 31BF03-ML	The Imaging Source	0.79	30	1/3"	CCD	GigE	0-75-1-5	c-2535	gige	ccd	mono	icx204	1024
DMM 37UX178-ML	The Imaging Source	6.3	60	1/1.8"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	mono	imx178	3072
DMM 37UX226-ML	The Imaging Source	12	30	1/1.7"	CMOS	USB 3.1	7-5-12-5	c-2535	usb-3-1	cmos	mono	imx226clj	4000
DMM 37UX250-ML	The Imaging Source	5	75	2/3"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	mono	imx250lqr	2448
DMM 37UX252-ML	The Imaging Source	3.1	119	1/1.8"	CMOS	USB 3.1	2-5-4-5	e-101200	usb-3-1	cmos	mono	imx252lqr	2048
DMM 37UX264-ML	The Imaging Source	5	38	2/3"	CMOS	USB 3.1	4-5-7-5	d-36100	usb-3-1	cmos	mono	imx264lqr	2448
DMM 37UX265-ML	The Imaging Source	3.1	60	1/1.8"	CMOS	USB 3.1	2-5-4-5	d-36100	usb-3-1	cmos	mono	imx265lqr	2048
DMM 37UX273-ML	The Imaging Source	1.6	236	1/2.9"	CMOS	USB 3.1	1-5-2-5	f-201750	usb-3-1	cmos	mono	imx273	1440
DMM 37UX287-ML	The Imaging Source	0.4	539	1/2.9"	CMOS	USB 3.1	0-0-75	f-201750	usb-3-1	cmos	mono	imx287	720
DMM 37UX290-ML	The Imaging Source	2	90	1/2.8"	CMOS	USB 3.1	1-5-2-5	d-36100	usb-3-1	cmos	mono	imx290	1920
DMM 42BUC03-ML	The Imaging Source	1.23	25	1/3"	CMOS	USB 2.0	0-75-1-5	c-2535	usb-2-0	cmos	mono	mt9m021	1280
DMM 47GR0521	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	mono	ar0521	2592
DMM 47GR0521-ML	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	mono	ar0521	2592
DMM 47GR0521-MLP	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	mono	ar0521	2592
DMM 47GR0521-P	The Imaging Source	5	22	1/2.5"	CMOS		4-5-7-5	b-1124		cmos	mono	ar0521	2592
DMM 72BUC02-ML	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono	mt9p031	2592

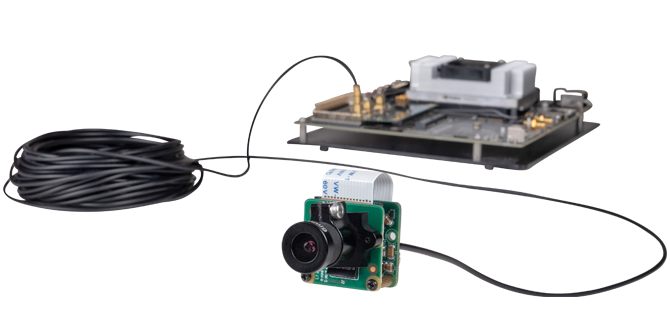

MIPI/CSI-2	The Imaging Source					MIPI			mipi			imx219
DMM 32UVR024 ML	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	ar0234cs	744
DMM 32UVR024-MLA	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	ar0234cs	744
DMM 32UVR024-MLPB	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	mono	ar0234cs	744

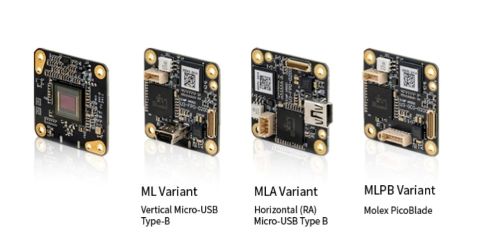

DMM 32UR0234-ML	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	mono	ar0234cs	1920
DMM 32UR0234-MLA	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	mono	ar0234cs	1920
DMM 32UR0234-MLPB	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	mono	ar0234cs	1920
DMM 32UR0521-ML	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono	ar0521	2592
DMM 32UR0521-MLA	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono	ar0521	2592
DMM 32UR0521-MLPB	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	mono	ar0521	2592
DFM 32UVR024-ML	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	ar0234cs	744
DFM 32UVR024-MLA	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	ar0234cs	744
DFM 32UVR024-MLPB	The Imaging Source	0.4 MP	89	1/3"	CMOS	USB 2.0	0-0-75	d-36100	usb-2-0	cmos	color	ar0234cs	744
DFM 32UR0234-ML	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	color	ar0234cs	1920
DFM 32UR0234-MLA	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	color	ar0234cs	1920
DFM 32UR0234-MLPB	The Imaging Source	2.3	13	1/2.6"	CMOS	USB 2.0	1-5-2-5	b-1124	usb-2-0	cmos	color	ar0234cs	1920
DFM 32UR0521-ML	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color	ar0521	2592
DFM 32UR0521-MLA	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color	ar0521	2592
DFM 32UR0521-MLPB	The Imaging Source	5	6	1/2.5"	CMOS	USB 2.0	4-5-7-5	a-10	usb-2-0	cmos	color	ar0521	2592
DMM 36SR0234-ML	The Imaging Source	2.3	120	1/2.6"	CMOS	22-pin FFC connector	1-5-2-5	e-101200	22-pin-ffc-connector	cmos	mono	ar0234	1920
DFM 36SR0234-ML	The Imaging Source	2.3	120	1/2.6"	CMOS	22-pin FFC connector	1-5-2-5	e-101200	22-pin-ffc-connector	cmos	color	ar0234	1920
