Line Sensor Lens Archives

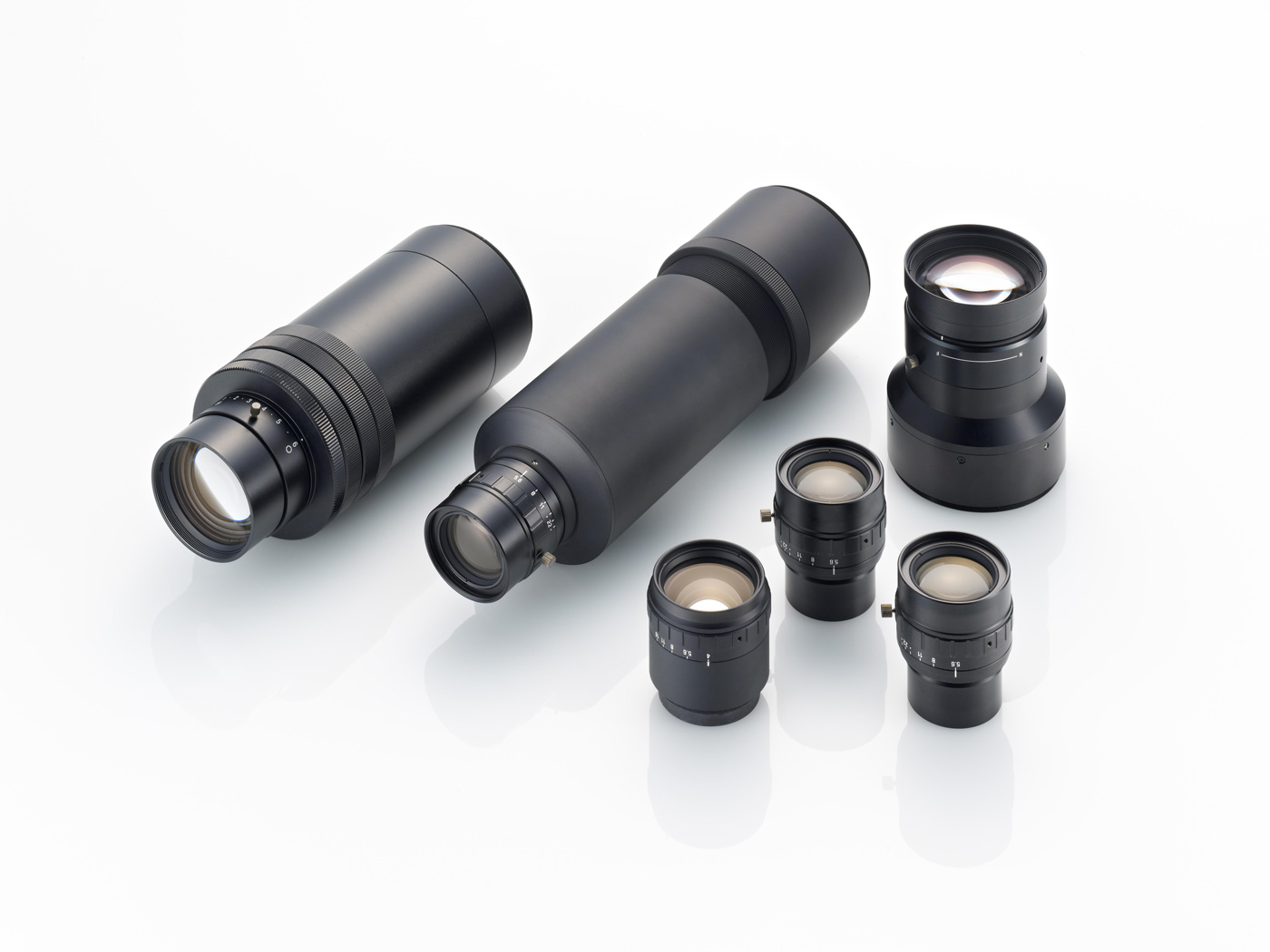

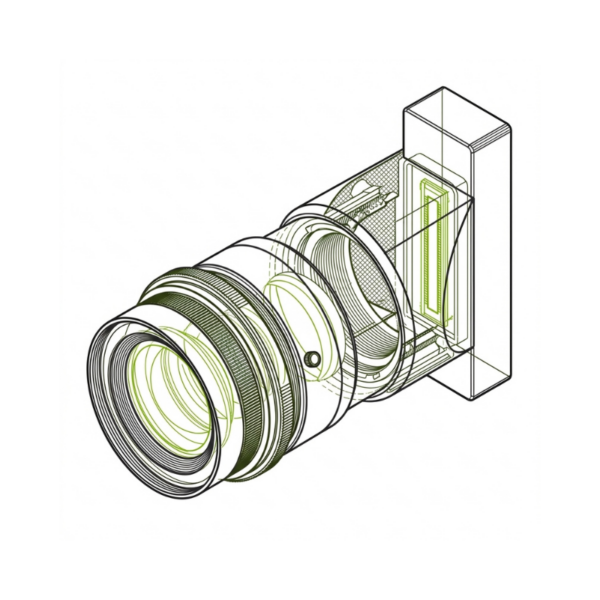

Line sensor lenses are designed for line scan cameras. There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.

Name	Manufacturer	Sensor Format	Weight	Mount	F	Mod	Focus Type	hf:tax:pa_sensor-format	hf:tax:pa_mount	hf:tax:pa_mod	hf:tax:pa_f	hf:tax:pa_optmag
VEO_CS DIAMOND 2.5X / F2.9	VIEWORKS	62.5mm	1350 g	V	2.4 to 2.6	63.6 to 65.6	Manual	62-5mm	v	63-6-to-65-6	2-4-to-2-6	2-4-to-2-6
VEO_CS DIAMOND 3.33X / F2.3	VIEWORKS	62.5mm	2260 g	V	2.3 to 4.0	54.5 to 56.5	Manual	62-5mm	v	54-5-to-56-5	2-3-to-4-0	3-2-to-3-4
VEO_CS DIAMOND 5.0X / F1.6	VIEWORKS	62.5mm	1170 g	V	1.6 to 2.8	33.6 to 34.3	Manual	62-5mm	v	33-6-to-34-3	1-6-to-2-8	4-9-to-5-1
VEO_CS SAPPHIRE 1.67X / F3.2	VIEWORKS	62.5mm	935 g	V	3.2 to 5.6	1294.7 to 356.1	Manual	62-5mm	v	1294-7-to-356-1	3-2-to-5-6	1-67-to-1-77
VEO_HJ APO 4.0 / 60	VIEWORKS	60mm	114 g	V	4.0 to 32	156	Manual	60mm	v	156	4-0-to-32	0-to-0-5
VEO_HJ APO 4.5 / 90	VIEWORKS	90mm	134 g	V	4.5 to 64	246	Manual	90mm	v	246	4-5-to-64	0-to-0-5
VEO_HJ COMPONON-S 4.0 / 80	VIEWORKS	80mm	109 g	V	4.0 to 45	214	Manual	80mm	v	214	4-0-to-45	0-to-0-5
VEO_JM DIAMOND 2.5X / F2.6	VIEWORKS	82mm	1510 g	V	2.6 to 5.6	58 to 60	Manual	82mm	v	58-to-60	2-6-to-5-6	2-4-to-2-6
VEO_JM DIAMOND 3.33X / F2.1	VIEWORKS	82mm	3101 g	V	2.1 to 4.0	38 to 40	Manual	82mm	v	38-to-40	2-1-to-4-0	3-2-to-3-4
VEO_JM DIAMOND 5.0X / F1.3	VIEWORKS	82mm	3547 g	V	1.3 to 2.8	30 to 32	Manual	82mm	v	30-to-32	1-3-to-2-8	4-9-to-5-1
VEO_JM SAPPHIRE 1.43X / F3.0	VIEWORKS	82mm	1954 g	V	3.0 to 5.6	49 to 51	Manual	82mm	v	49-to-51	3-0-to-5-6	1-38-to-1-47
VEO_JM SAPPHIRE 1.67X / F3.0	VIEWORKS	82mm	1847 g	V	3.0 to 5.6	49 to 51	Manual	82mm	v	49-to-51	3-0-to-5-6	1-62-to-1-72
VEO_YK EMERALD 2.2 / 50	VIEWORKS	43.2mm	202 g	V	2.2 to 16	327	Manual	43-2mm	v	327	2-2-to-16	0-to-0-167
VS-L01014-35/F	VS	35	308 g	F	2.1	467.1 to 335.7	Manual	35	f	467-1-to-335-7	2-1	0-1-to-0-14
VS-L0104-65/M72	VS	65mm	848 g	M72	4.95 to 6.31	1304.5 to 398.6	Manual	65mm	m72	1304-5-to-398-6	4-95-to-6-31	0-1-to-0-4
VS-L0207-62/M72	VS	62mm	420 g	M72	4.80 to 6.80	465.3 to 185.2	Manual	62mm	m72	465-3-to-185-2	4-80-to-6-80	0-2-to-0-7
VS-L025075-65/M72	VS	65mm	900 g	M72	5.88 to 8.23	596.12 to 260.1	Manual	65mm	m72	596-12-to-260-1	5-88-to-8-23	0-25-to-0-75
VS-L0715-65/M72	VS	65mm	1275 g	M72	8.48 to 12.47	276.3 to 174.5	Manual	65mm	m72	276-3-to-174-5	8-48-to-12-47	0-7-to-1-5
VS-L10028/F	VS	45mm	360 g	F	3.2 to 3.97	2050.7 to 409	Manual	45mm	f	2050-7-to-409	3-2-to-3-97	0-05-to-0-3
VS-L12025-5/M67S	VS	86.4mm	960 g	M67	15	78.7	Manual	86-4mm	m67	78-7	15	5-0x
VS-L12028-3.3/M67S	VS	90mm	950 g	M67	12.6	82.7	Manual	90mm	m67	82-7	12-6	3-3x
VS-L12035-05/V	VS	90mm	390 g	V	5.3	333.2	Manual	90mm	v	333-2	5-3	0-45x-0-55x
VS-L12035-075/V	VS	90mm	350 g	V	6.1	248.9	Manual	90mm	v	248-9	6-1	0-7x-0-8x
VS-L12035-1/V	VS	90mm	350 g	V	7	215.7	Manual	90mm	v	215-7	7	0-9x-1-1x
VS-L12040-2.5/M67S	VS	90mm	670 g	M67	13.7	115.5	Manual	90mm	m67	115-5	13-7	2-5x
VS-L12040-2/M67S	VS	90mm	680 g	M67	12.1	127	Manual	90mm	m67	127	12-1	2-0x
VS-L12056-03/V	VS	90mm	170 g	V	6.9-7.7	228.1-284.9	Manual	90mm	v	228-1-284-9	6-9-7-7	0-225x-0-375x
VS-L12056-05/V	VS	90mm	160 g	V	7.7-9.1	285.9-417.2	Manual	90mm	v	285-9-417-2	7-7-9-1	0-375x-0-625x
VS-L12056-075/V	VS	90mm	165 g	V	9.0-10.3	228.1-284.9	Manual	90mm	v	228-1-284-9	9-0-10-3	0-625x-0-875x
VS-L12056-1/V	VS	90mm	165 g	V	10.3-11.7	196.6-228.2	Manual	90mm	v	196-6-228-2	10-3-11-7	0-875x-1-125x
VS-L1828/F	VS	29mm		F	1795.2 to 289.0	722.9 to 137.9	Manual	29mm	f	722-9-to-137-9	1795-2-to-289-0	0-025-to-0-12
VS-L18556/F	VS	45mm	400 g	F	7.07 to 7.39	1951.7 to 1404.4	Manual	45mm	f	1951-7-to-1404-4	7-07-to-7-39	0-159-to-0-108
VS-L2526/F	VS	29mm		F	2.69 to 2.94	1010.8 to 198.1	Manual	29mm	f	1010-8-to-198-1	2-69-to-2-94	0-025-to-0-12
VS-L3528/F	VS	45mm	355 g	F	2.84 to 3.51	706.9 to 112.8	Manual	45mm	f	706-9-to-112-8	2-84-to-3-51	0-05-to-0-3
VS-L3528HL/F	VS	43		F	2.87 to 3.15	1795.2 to 289.0	Manual	43	f	1795-2-to-289-0	2-87-to-3-15	0-02-to-0-12
VS-L3528LM/F	VS	45mm	390 g	F	2.91 to 3.24	1795.2 to 289.0	Manual	45mm	f	1795-2-to-289-0	2-91-to-3-24	0-02-to-0-12
VS-L5028/F	VS	45mm	295 g	F	3.05 to 3.77	1025 to 181.4	Manual	45mm	f	1025-to-181-4	3-05-to-3-77	0-05-to-0-3
VS-L5028HL/F	VS	43		F	2.98 to 3.34	1294.7 to 356.1	Manual	43	f	1294-7-to-356-1	2-98-to-3-34	0-04-to-0-15
VS-L5045FL/M72S	VS	75mm	910 g	M72	4.7-5.3	1763.4-373.7	Manual	75mm	m72	1763-4-373-7	4-7-5-3	0-03-to-0-15
VS-L6035/V	VS	62mm	360 g	V	4.06	349.2	Manual	62mm	v	349-2	4-06	0-165
VS-L6040/V	VS	82mm		V	5.71	214.8	Manual	82mm	v	214-8	5-71	0-35
VS-L7528/M72-31.8	VS	73mm	440 g	M72	3.0-3.4	1544.2-419.5	Manual	73mm	m72	1544-2-419-5	3-0-3-4	0-05-to-0-2
VS-L8528/M72	VS	62mm		M72	2.96 to 3.52	1722.9 to 366.0	Manual	62mm	m72	1722-9-to-366-0	2-96-to-3-52	0-05-to-0-25
VS-L8528LM/M72	VS	62mm	540 g	M72	2.9-3.4	1724.0-462.0	Manual	62mm	m72	1724-0-462-0	2-9-3-4	0-05-to-0-2
VS-L8540/F	VS	50mm	346 g	F	4.4 to 5.4	864.2 to 285.0	Manual	50mm	f	864-2-to-285-0	4-4-to-5-4	0-1-to-0-35
VS-L8540/V	VS	62mm	160 g	V	5.11	345.2	Manual	62mm	v	345-2	5-11	0-28
VS-L8540-06/V	VS	62mm	170 g	V	6.4	187	Manual	62mm	v	187	6-4	0-6
VS-LTC03-130/FS	VS	22mm	960 g	F	5.77	130.2	Manual	22mm	f	130-2	5-77	0-3
VS-LTC04-100-21/FS	VS	20.48mm	646 g	F	4 to 32	95.2	Manual	20-48mm	f	95-2	4-to-32	0-4
VS-LTC05-130/FS	VS	22mm		F	4.57	132.9	Manual	22mm	f	132-9	4-57
VS-LTC07-150/FS	VS	21mm	585 g	F	5.29	150.8	Manual	21mm	f	150-8	5-29	0-7
VS-LTC075-70-35/FS	VS	35mm	754 g	F	5.4	70.2	Manual	35mm	f	70-2	5-4	0-75
VS-LTC075-70CO-35/FS	VS	35mm	765 g	F	5.4	70.2	Manual	35mm	f	70-2	5-4	0-75
VS-LTC1-130/FS	VS	22mm	620 g	F	6.25	131.5	Manual	22mm	f	131-5	6-25	1
VS-LTC1-130-45/FS	VS	45mm	1180 g	F	6.4	130	Manual	45mm	f	130	6-4	1
VS-LTC1-130CO-45/FS	VS	45mm	1240 g	F	6.4	130	Manual	45mm	f	130	6-4	1
VS-LTC1-70-35/FS	VS	35mm	754 g	F	6.25	70.2	Manual	35mm	f	70-2	6-25	1
VS-LTC1-70CO-35/FS	VS	35mm	765 g	F	6.25	70.2	Manual	35mm	f	70-2	6-25	1
VS-LTC2-130-45/FS	VS	45mm	1500 g	F	8.3	130	Manual	45mm	f	130	8-3	2
VS-LTC2-130CO-45/FS	VS	45mm	1580 g	F	8.3	130	Manual	45mm	f	130	8-3	2
VS-LTC2-60/FS	VS	35mm	880 g	F	9.1	60	Manual	35mm	f	60	9-1	2
VS-LTC2-70/FSN	VS	35mm		F	12.5	70.2	Manual	35mm	f	70-2	12-5	2
VS-LTC2-70CO/FSN	VS	35mm		F	12.5	70.2	Manual	35mm	f	70-2	12-5	2
VS-LTC3.3-45/FS	VS	35mm	1100 g	F	19.2	45	Manual	35mm	f	45	19-2	3-3
VS-LTC4-50CO-28/F	VS	25mm		F	20	52.4	Manual	25mm	f	52-4	20	4
VS-LTC5-50CO-28/F	VS	28.6		F	25	51.5	Manual	28-6	f	51-5	25	5
VS-LTC6-50CO-28/F	VS	28.6		F	30	50.9	Manual	28-6	f	50-9	30	6
VS-LTC7-20CO-40/F	VS	40	490 g	F	17.5	19.6	Manual	40	f	19-6	17-5	7
VS-LTC7-50CO-28/F	VS	28.6		F	35	50.5	Manual	28-6	f	50-5	35	7
VS-LZ0510/F	VS	42		F	2.6 to 4.5	130	Manual	42	f	130	2-6-to-4-5	0-11-to-0-2
VS-LZ2035/F	VS	29mm	620 g	F	6.46 to 9.69	107.1 to 76.1	Manual	29mm	f	107-1-to-76-1	6-46-to-9-69	1-0-to-2-0
