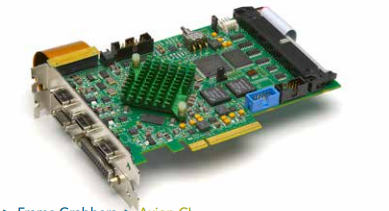

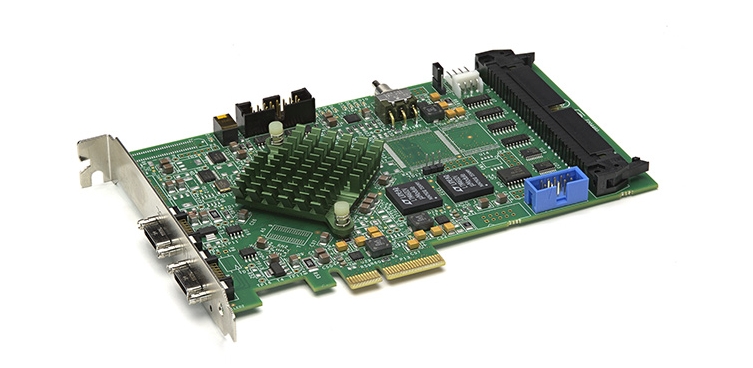

AXN-PC2-CL-2E

BitFlow has been making Camera Link frame grabbers since 1999. With each successive generation of frame grabbers, BitFlow has improved the quality, flexibility and robustness of their interfaces. Meanwhile, much has changed on the backend; PCI to PCIe, Gen 1 to Gen 2, etc. Also the Camera Link Specification had been continuously evolving: 80-bit (10-tap) mode was added, Power over Camera Link (PoCL), new connectors, new tap formats. Even though the specification has been around a long time, it is still one of the simplest, efficient and least expensive ways to get camera data into a computer. It also benefits from 100s of thousands of pieces of CL equipment sold worldwide. BitFlow has been on top of all these changes and has continuously improved and updated their Camera Link frame grabbers. The Axion-CL is the culmination of all of these improvements, the most powerful CL frame grabber BitFlow has ever manufactured. The Axion-CL also benefits from other products in BitFlow's line up. The Axion-CL uses the Cyton-CXP's backend: the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers.
PRODUCT NAME AXN-PC2-CL-2E
CATEGORY Acquisition
SUB CATEGORY Digital;
Interface Camera Link PoCL
MANUFACTURER Bitflow
Datasheet Download
Host Interface PCIe x4
OS Support Win32,Win64
Programmable FPGA No
