Featuers

Front Light

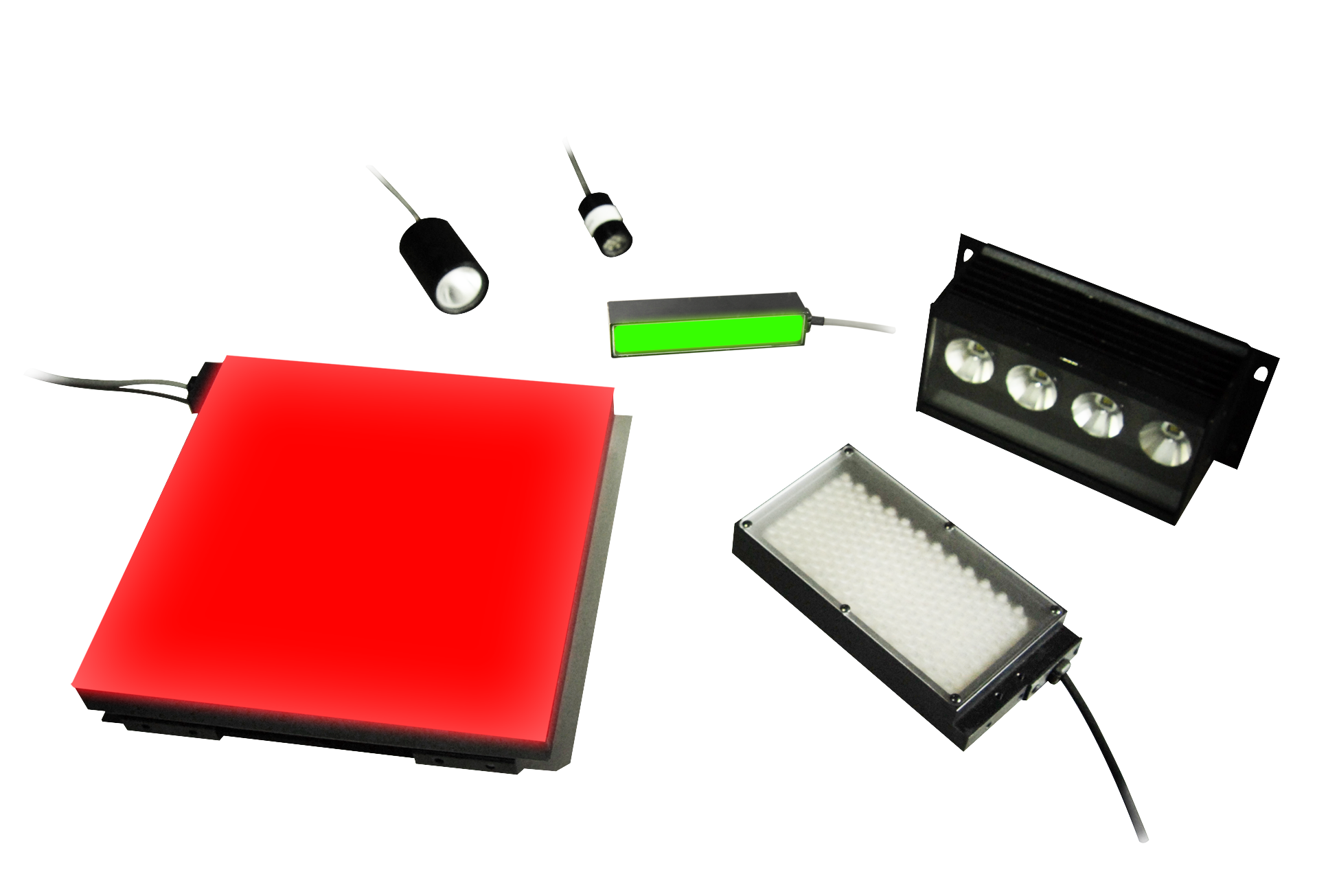

1Vision provides a wide selection of front lights including high power compact diffused lights, oblique lights, ruggedized area front lights, standard front lights, adjustable focus mini spotlights and round area front lights.

Let us help you find the front light that best suits your needs!

Find the front light that is best for your application!

Using our advanced search engine you can define the following characteristics to locate the front light most suited to your needs

Front Light Products
Part # Description CATEGORY SUB CATEGORY MANUFACTURER Size Datasheet Voltage Temp. Range Power Illumination Color Environmental
MB-RBL-205-R-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V Red IP67
MB-RBL-205-IRN-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V Infra-Red (850nm) IP67
MB-RBL-205-B-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V Blue IP67
MB-RBL-205-G-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V Green IP67
MB-RBL-205-W-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V White IP67
MB-RBL-205-UVL-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V UVL (395nm) IP67
MB-RBL-205-UVS-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 6ʺ Download 24V UV (365nm) IP67
MB-RBL-305-R-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V Red IP67
MB-RBL-305-IRN-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V Infra-Red (850nm) IP67
MB-RBL-305-B-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V Blue IP67
MB-RBL-305-G-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V Green IP67
MB-RBL-305-W-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V White IP67
MB-RBL-305-UVL-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V UVL (395nm) IP67
MB-RBL-305-UVS-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 12ʺ Download 24V UV (365nm) IP67
MB-RBL-405-R-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V Red IP67
MB-RBL-405-IRN-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V Infra-Red (850nm) IP67
MB-RBL-405-B-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V Blue IP67
MB-RBL-405-G-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V Green IP67
MB-RBL-405-W-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V White IP67
MB-RBL-405-UVL-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V UVL (395nm) IP67
MB-RBL-405-UVS-24 MetabrightTM Robolights provide high intensity direct illumination comparable to MetabrightTM Front Lights and are designed for IP68 rated environments. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost effective and “integrator ready” machine vision illuminator with an integrated constant current driver (24 volt version). Illumination Front Light Metaphase 2.5ʺ x 24ʺ Download 24V UV (365nm) IP67
FL201-R-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V Red
FL201-IRN-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V Infra-Red (850nm)
FL201-B-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V Blue
FL201-G-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V Green
FL201-W-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V White
FL201-UVL-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V UVL (395nm)
FL201-UVS-24 This MetaLight™ area front light provides 1.3" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 1.3ʺx2.5ʺ Download 24V UV (365nm)
FL301-R-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V Red
FL301-IRN-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V Infra-Red (850nm)
FL301-B-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V Blue
FL301-G-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V Green
FL301-W-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V White
FL301-UVL-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V UVL (395nm)
FL301-UVS-24 This MetaLight™ area front light provides 2.5" x 2.5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx2.5ʺ Download 24V UV (365nm)
FL401-R-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V Red
FL401-IRN-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V Infra-Red (850nm)
FL401-B-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V Blue
FL401-G-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V Green
FL401-W-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V White
FL401-UVL-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V UVL (395nm)
FL401-UVS-24 This MetaLight™ area front light provides 3" x 5" direct intensity lighting. Used alone or in pairs these lights have the advantage of being able to be moved around to both on and off axis to provide the best lighting scenario. Our front lights can be configured for wavelength and other specifications. Illumination Front Light Metaphase 2.5ʺx5ʺ Download 24V UV (365nm)
MBCFL2.5X1.25W MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W White
MBCFL2.5X1.25UVL MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W UVL (395nm)
MBCFL2.5X1.25UVS MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W UV (365nm)
MBCFL2.5X1.25R MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W Red
MBCFL2.5X1.25IR MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W Infra-Red (850nm)
MBCFL2.5X1.25B MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W Blue
MBCFL2.5X1.25G MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W Green
MBCFL2.5X1.25RGB MetaBright High Compact Diffuse Front Light Illumination Front Light Metaphase 3.4ʺx4.1ʺ Download 24v -30° to 60°C 12W RGB
MB-FL

MetaBright Front Lights feature high-density LED array placement and proprietary Metaphase thermal management
technology to assure maximum LED lifetime and lowest cost of ownership. Our Front Lights are designed for longer
working distances and feature rugged housings such as those found in industrial robotics work envelopes.



MODEL - SIZE - WAVELENGTH - DRIVER - LENS - DIFFUSER - CABLE LENGTH - CONN.** (most Common
MB-FL - XXX - XXXXX - XXXXX - XXX - XX - XXX - XXXX
MB-FL -

201 (1.3X2.5'')

301 (2.5x2.5'')

401 (3.0X5.0'')

411 (3.0X5.0'')

-

W (White 6000K, Nominal)

R (Red 630nm)

G (Green 530nm)

B (Blue 470nm)

IR850 (Infrared 850nm)

UV365 (UV Short 365nm)

UV395 (UV Long 395nm)

-

24Z

24Z-TRG

24-ILD

24-ILSXXX

24-BISXXX

-

L11 (11°)

L30 (30°)

L34 (34°)

-

CC (Clear Cover)

D2 (Single Matte)

D3 (TIR/SLK)

D4 (Milky White)

D5 (Double Matte)

-

5M

10M





Length can be customized: ex.7M=7meters

-

M12D¹ ²

BC¹ ³



        - XXX=rate in µs Example: 250 - elect or leave blank for no lens - Select one - Select or leave blank for 3 meters - Select or leave blank for flying leads



Illumination Front Light Metaphase Download
MB-FLD Series

High Power Flood Lights

These LED front lights provide both high-intensity and high-uniformity LED lighting.  Designed for longer working distance, with rugged housings for industrial/robotics. Features include our built-in driver technology and a unitized alloy body thermally potted for longevity.

Applications:

  • Large Area Illumination / Front Lighting
  • Industrial / Manufacturing
  • Robotics
  • Motion Analysis / Sports Lighting
  • Inspection / Machine Vision

Features:

  • High power flood light with Rugged Design
  • Standard Constant Current Driver (CCD) OR ULC-2 compatible version (-U)
  • 0-10 VDC dimming/intensity control
  • Strobing options available





SAMPLE PART NUMBER

MB-FLD

[MODEL]

406

[LENGTH ID]



W

[WAVELENGTH]



24Z

[DRIVER]



D2

[DIFFUSER]



MODEL SIZE - WAVELENGTH - DRIVER (most common) - LENS - DIFFUSER - CABLE LENGTH - CONNECTOR (most common)
MB-FLD XXX   XXXXX   XXXXX   XXX   XX   XXX   XXXX
MLB-FLD 406 (6.5")   W (White 6000K)
R (Red 630nm)
G (Green 530nm)
B (Blue 470nm)
IR850 (Infrared 850nm
IR940 (IR940)
UV365 (UV Short 365nm)
UV395 (UV Long 395nm)
RGB
  24Z
24Z-TRG
24-ILD
U1
  L11 (110)   CC (Clear Cover)
D2 (Single Matte)
D4 (Milky White)
D5 (Double Matte)
  5M
10M
  M12D 1 2
              Select or leave blank for 30lens   Select one   Length can be customized ex. 7M=7 meters
Select or leave blank for 3 meters
  Select or leave blank for flying leads

Not available in lights exceeding 4A input current

Default cable length for an M12D connector is 19 inches



Illumination Front Light Metaphase Download
TX ISO Series

Advanced Performance for Machine Vision Inspection, Measurement, and Gauging

The TX Series of Exolights provide superior performance for the most demanding machine vision applications. Utilizes a bright and highly uniform array of LEDs. State-of-the-art driver technology delivers instant start-up and flicker-free operation and can be used both in DC continuous operation and with 4x Optical, Pulse-Follow Strobe.



Features:

  • Best for high-contrast, high-accuracy inspection
  • New, state-of-the-art driver and microchip – continuous DC with 4x Optical Strobe all-in-one
  • Maximum installation flexibility with T-slot L-brackets and optional mounting brackets
  • Available in multiple wavelengths, multispectral, and hyperspectral
  • Comes in all sizes, ranging from 75mm up to 3+ meters.
  • Various polarizer, diffuser, and cover options
  • IP-rated versions



FAMILY MODEL - LENGTH - COLOR - POLARIZER - DIFFUSER/COVER - CONNECTOR
TXISO XX   XX   XXXXX   XX   XX
TXISO

1A (ULC compatible)

1C (continuous w/ pulse follow)

2A IP-rated(ULC compatible)

2C IP-rated (continuous w/pulse follow)



  Ex. 12=12x25=300mm


24=24x25=600mm



List number of 25mm segments, only available in 75mm increments, ie. 03,06,09,12, etc.


W (White 6000K)

R (Red 630nm)

G (Green 530nm)

B (Blue 470nm)

RGB (Red, Green Blue)

*Contact Sales for more colors and color combinations



Blank if no polarizer

P0*

P9*

*Polarizer requires clear cover



blank for default

Default is D300 with UV pass diffuser

Default for Polarizer is clear cover with diffuser

*Many additional diffuser options available - Contact your Sales Rep



8-pin Multi-Con-S

M12

NOTE:
M12A connector comes standard on sizes 15 and below for C version. M12T comes standard on sizes 54 and below single-color, 27 and below 2-color. For larger sizes, or multicolor lights, Multi-Con-S is standard.  Leave blank for Multi-Con-S, add M12 for M12 connector.

Illumination Front Light Download
