Board Cameras

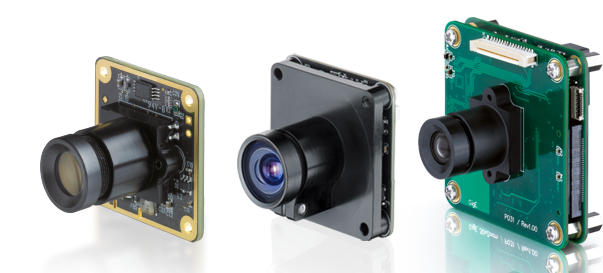

Board cameras are non-housed printed circuit boards that can be embedded in multiple configurations for a wide range of applications. Board cameras are usually small in size, and therefore are well-suited for embedded and space-limited applications such as industrial automation, quality control, surveillance, medicine and more.
1Vision provides a wide variety of board cameras available in a wide range of image sensors and interfaces.
Let us help you find the board camera that best suits your needs!
| Part # | Description | CATEGORY | SUB CATEGORY | Camera Type | Resolution [MPixel] | Width [Pixel] | Height [Pixel] | FrameRate [f/s] | Sensor Format | Pixel W[µm] | Pixel H[µm] | Interface | Sensor Type | Shutter Type | Bit_Depth | MANUFACTURER | Size | Datasheet | Sensor Manufacturer | Sensor Model | Full well capacity | Type | Auto Iris | Mount | Voltage | Temp. Range | Weight[g] | Power | USERMANUAL | ColorMono | Sensor Format Range | Frame_Rate_Range | Resolution_Range | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ARTCAM-900SS-OP | Cameras | Board Cameras | Area | 9 | 3488 | 2616 | 2.45 | 1/2.3ʺ | 1.75 | 1.75 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | MICRON | Board | No | Download | Color | b: 1/2" ~ 8mm | a: ~10 | f: 7.5-12.5 | ||||||||||
| ARTCAM-625KY-BW -OP | Cameras | Board Cameras | Area | 5 | 2456 | 2058 | 2.4 | 1/2ʺ | 3.45 | 3.45 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX625 | 6.5Ke | Board | No | Download | Mono | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | |||||||||
| ARTCAM-625KY-OP | Cameras | Board Cameras | Area | 5 | 2456 | 2058 | 2.4 | 1/2ʺ | 3.45 | 3.45 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX625 | 6.5Ke | Board | No | Download | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | |||||||||
| ARTCAM-500SS-OP-SATA | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 10 | 1/2.5ʺ | 2.2 | 2.2 | SATA | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | |||||||||||
| ARTCAM-500SS-BW-OP | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 3.75 | 1/2.5ʺ | 2.2 | 2.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Mono | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | |||||||||||
| ARTCAM-500SS-OP | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 3.75 | 1/2.5ʺ | 2.2 | 2.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | |||||||||||
| ARTCAM-500PII-OP | Cameras | Board Cameras | Area | 5 | 2588 | 1960 | 3.75 | 1/2ʺ | 3.4 | 3.4 | USB 2.0 | CCD | Interlace | ARTRAY | Download | Aptina | Board | No | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | ||||||||||||
| ARTCAM-500PII-OP-SATA | Cameras | Board Cameras | Area | 5 | 2588 | 1960 | 3.75 | 1/2ʺ | 3.4 | 3.4 | USB 2.0 | CCD | Interlace | ARTRAY | Download | Aptina | Board | No | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | ||||||||||||
| ARTCAM-300MI-BW-OP-SATA | Cameras | Board Cameras | Area | 3 | 2048 | 1536 | 16 | 1/2ʺ | 3.2 | 3.2 | SATA | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Mono | b: 1/2" ~ 8mm | b: 11~24 | d: 2.5-4.5 | |||||||||||
| ARTCAM-300MI-OP-SATA | Cameras | Board Cameras | Area | 3 | 2048 | 1536 | 16 | 1/2ʺ | 3.2 | 3.2 | SATA | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Color | b: 1/2" ~ 8mm | b: 11~24 | d: 2.5-4.5 | |||||||||||
| ARTCAM-300MI-BW-OP | Cameras | Board Cameras | Area | 3 | 2048 | 1536 | 6 | 1/2ʺ | 3.2 | 3.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Mono | b: 1/2" ~ 8mm | a: ~10 | d: 2.5-4.5 | |||||||||||
| ARTCAM-300MI-OP | Cameras | Board Cameras | Area | 3 | 2048 | 1536 | 6 | 1/2ʺ | 3.2 | 3.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | Board | No | Download | Color | b: 1/2" ~ 8mm | a: ~10 | d: 2.5-4.5 | |||||||||||
| ARTCAM-274KY-BW -OP | Cameras | Board Cameras | Area | 2.01 | 1628 | 1236 | 10 | 1/1.8ʺ | 4.4 | 4.4 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX274 | 13.9Ke | Board | No | Download | Mono | c: 2/3" ~11mm | a: ~10 | c: 1.5-2.5 | |||||||||
| ARTCAM-274KY-OP | Cameras | Board Cameras | Area | 2.01 | 1628 | 1236 | 10 | 1/1.8ʺ | 4.4 | 4.4 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX274 | 13.9Ke | Board | No | Download | Color | c: 2/3" ~11mm | a: ~10 | c: 1.5-2.5 | |||||||||
| ARTCAM-274KY-OP-SATA | Cameras | Board Cameras | Area | 2.01 | 1628 | 1236 | 10 | 1/1.8ʺ | 4.4 | 4.4 | SATA | CCD | Global | ARTRAY | Download | Sony | ICX274 | 13.9Ke | Board | No | Download | Color | c: 2/3" ~11mm | a: ~10 | c: 1.5-2.5 | |||||||||
| ARTCAM-267KY-OP-SATA | Cameras | Board Cameras | Area | 1.39 | 1360 | 1024 | 18 | 1/2ʺ | 4.65 | 4.65 | SATA | CCD | Global | ARTRAY | Download | Sony | ICX267 | 9.16Ke | Board | No | Download | Color | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | |||||||||
| ARTCAM-150PIII-BW -OP | Cameras | Board Cameras | Area | 1.39 | 1360 | 1024 | 12 | 1/2ʺ | 4.65 | 4.65 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX205 | Board | No | Mono | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | |||||||||||
| ARTCAM-150PIII-OP | Cameras | Board Cameras | Area | 1.39 | 1360 | 1024 | 12 | 1/2ʺ | 4.65 | 4.65 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | ICX205 | Board | No | Color | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | |||||||||||
| ARTCAM-267KY-BW -OP-SATA | Cameras | Board Cameras | Area | 1.39 | 1360 | 1024 | 12 | 1/2ʺ | 4.65 | 4.65 | SATA | CCD | Global | ARTRAY | Download | Sony | ICX267 | 9.16Ke | Board | No | Download | Mono | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | |||||||||
| ARTCAM-130MI-BW-OP | Cameras | Board Cameras | Area | 1.31 | 1280 | 1024 | 15 | 1/2ʺ | 5.2 | 5.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | MT9M001 | Board | No | Download | Mono | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | ||||||||||
| ARTCAM-130MI-OP | Cameras | Board Cameras | Area | 1.31 | 1280 | 1024 | 15 | 1/2ʺ | 5.2 | 5.2 | USB 2.0 | CMOS | Rolling | ARTRAY | Download | Aptina | MT9M001 | Board | No | Download | Color | b: 1/2" ~ 8mm | b: 11~24 | b: 0.75-1.5 | ||||||||||
| ARTCAM-036MI-BW-OP | Cameras | Board Cameras | Area | 0.36 | 752 | 480 | 60 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Download | Mono | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | ||||||||||
| ARTCAM-036MI-OP | Cameras | Board Cameras | Area | 0.36 | 752 | 480 | 60 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Color | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | |||||||||||
| ARTCAM-022MINI-BW-OP | Cameras | Board Cameras | Area | 0.36 | 752 | 480 | 10 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Mono | a: 1/3" ~ 6mm | a: ~10 | a: 0-0.75 | |||||||||||
| ARTCAM-022MINI-OP | Cameras | Board Cameras | Area | 0.36 | 752 | 480 | 10 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Download | Color | a: 1/3" ~ 6mm | a: ~10 | a: 0-0.75 | ||||||||||
| ARTCAM-036MI-BW-OP-SATA | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/3ʺ | 6 | 6 | SATA | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Download | Mono | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | ||||||||||
| ARTCAM-036MI-OP-SATA | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/3ʺ | 6 | 6 | SATA | CMOS | Global | ARTRAY | Download | Aptina | MICRON | Board | No | Download | Color | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | ||||||||||
| ARTCAM-098II-BW -OP | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 30 | 1/4ʺ | 5.6 | 5.6 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | Board | No | Mono | a: 1/3" ~ 6mm | c: 25~35 | a: 0-0.75 | ||||||||||||
| ARTCAM-098II-OP | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 30 | 1/4ʺ | 5.6 | 5.6 | USB 2.0 | CCD | Global | ARTRAY | Download | Sony | Board | No | Color | a: 1/3" ~ 6mm | c: 25~35 | a: 0-0.75 | ||||||||||||
| DMM 22BUC03-ML | The Imaging Source DMM 22BUC03-ML monochrome camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/3 inch Micron CMOS MT9V024 sensor. With up to 76 images per second, the DMM 22BUC03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 22BUC03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.36 | 744 | 480 | 60 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9V024IA7XTM | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Mono | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | ||||
| DFM 22BUC03-ML | The Imaging Source DFM 22BUC03-ML color camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/3 inch Micron CMOS MT9V024 sensor. With up to 76 images per second, the DFM 22BUC03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 22BUC03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.36 | 744 | 480 | 60 | 1/3ʺ | 6 | 6 | USB 2.0 | CMOS | Global | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9V024IA7XTM | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Color | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | ||||
| DMM 42BUC03-ML | The Imaging Source DMM 42BUC03-ML monochrome camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/3 inch Micron CMOS MT9M021 sensor. With up to 25 images per second, the DMM 42BUC03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 42BUC03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. | Cameras | Board Cameras | Area | 1.23 | 1280 | 960 | 25 | 1/3ʺ | 3.75 | 3.75 | USB 2.0 | CMOS | Global | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9M021 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Mono | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | ||||
| DFM 42BUC03-ML | The Imaging Source DFM 42BUC03-ML color camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/3 inch Micron CMOS MT9M021 sensor. With up to 25 images per second, the DFM 42BUC03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 42BUC03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. | Cameras | Board Cameras | Area | 1.23 | 1280 | 960 | 25 | 1/3ʺ | 3.75 | 3.75 | USB 2.0 | CMOS | Global | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9M021 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Color | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | ||||
| DMM 72BUC02-ML | The Imaging Source DMM 72BUC02-ML monochrome camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.5 inch Micron CMOS MT9P031 sensor. With up to 6 images per second, the DMM 72BUC02-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 72BUC02-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 6 | 1/2.5ʺ | 2.2 | 2.2 | USB 2.0 | CMOS | Rolling | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9P031 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Mono | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | ||||
| DFM 72BUC02-ML | The Imaging Source DFM 72BUC02-ML color camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch Micron CMOS MT9P006 sensor. With up to 6 images per second, the DFM 72BUC02-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 72BUC02-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 6 | 1/2.5ʺ | 2.2 | 2.2 | USB 2.0 | CMOS | Rolling | 8 | The Imaging Source | 36x36x25 | Download | Aptina | MT9P031 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | ~1.25W | Color | b: 1/2" ~ 8mm | a: ~10 | e: 4.5-7.5 | ||||
| DFM 24UP031-ML | The Imaging Source DFM 24UP031-ML color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DFM 24UP031-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 24UP031-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x18 | Download | Aptina | MT9J003 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Color | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DMM 24UP031-ML | The Imaging Source DMM 24UP031-ML monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DMM 24UP031-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 24UP031-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x18 | Download | Aptina | MT9J003 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Mono | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DFM 24UJ003-ML | The Imaging Source DFM 24UJ003-ML color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor. With up to 7 images per second, the DFM 24UJ003-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 24UJ003-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 11 | 3856 | 2764 | 7 | 1/2.3ʺ | 1.67 | 1.67 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x18 | Download | Aptina | MT9J003 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Color | b: 1/2" ~ 8mm | a: ~10 | f: 7.5-12.5 | |||
| DMM 24UJ003-ML | The Imaging Source DMM 24UJ003-ML monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor. With up to 7 images per second, the DMM 24UJ003-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 24UJ003-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 11 | 3856 | 2764 | 7 | 1/2.3ʺ | 1.67 | 1.67 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x18 | Download | Aptina | MT9J003 | Board | No | C/CS | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Mono | b: 1/2" ~ 8mm | a: ~10 | f: 7.5-12.5 | |||
| DFM 25GP031-ML | The Imaging Source DFM 25GP031-ML color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DFM 25GP031-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 25GP031-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 29x29x47 | Download | Aptina | MT9P031 | Board | No | C/CS | 11-13v or PoE | -5° to 45°C | 65g | ~7.2W | Color | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DMM 25GP031-ML | The Imaging Source DMM 25GP031-ML monochrome camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DMM 25GP031-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 25GP031-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 29x29x47 | Download | Aptina | MT9P031 | Board | No | C/CS | 11-13v or PoE | -5° to 45°C | 65g | ~7.2W | Mono | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DFM 25GX236-ML | The Imaging Source DFM 25GX236-ML color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.8 inch Sony CMOS Exmor IMX236LQ sensor. With up to 36 images per second, the DFM 25GX236-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 25GX236-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 36 | 1/2.8ʺ | 2.8 | 2.8 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 29x29x43 | Download | Sony | IMX236 | Board | No | C/CS | 11-13v or PoE | -5° to 45°C | 65g | ~7.2W | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||
| DMM 25GX236-ML | The Imaging Source DMM 25GX236-ML monochrome camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.8 inch Sony CMOS Exmor IMX236LL sensor. With up to 36 images per second, the DMM 25GX236-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 25GX236-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 36 | 1/2.8ʺ | 2.8 | 2.8 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 29x29x43 | Download | Sony | IMX236 | Board | No | C/CS | 11-13v or PoE | -5° to 45°C | 65g | ~7.2W | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||
| DMM 27UP031-ML | The Imaging Source DMM 27UP031-ML monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DMM 27UP031-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 27UP031-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x10 | Download | Aptina | MT9P031 | Board | No | M12x0.5 | 4.5-5.5v | -5° to 45°C | 65g | ~0.25W | Mono | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DMM 27UJ003-ML | The Imaging Source DMM 27UJ003-ML monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor. With up to 7 images per second, the DMM 27UJ003-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 27UJ003-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 11 | 3856 | 2764 | 7 | 1/2.3ʺ | 1.67 | 1.67 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x10 | Download | Aptina | MT9J003 | Board | No | M12x0.5 | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Mono | b: 1/2" ~ 8mm | a: ~10 | f: 7.5-12.5 | |||
| DFM 27UP006-ML | The Imaging Source DFM 27UP006-ML color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P006 sensor. With up to 15 images per second, the DFM 27UP006-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 27UP006-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 15 | 1/2.5ʺ | 2.2 | 2.2 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x10 | Download | Aptina | MT9P006 | Board | No | M12x0.5 | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Mono | b: 1/2" ~ 8mm | b: 11~24 | e: 4.5-7.5 | |||
| DFM 27UJ003-ML | The Imaging Source DFM 27UJ003-ML color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor. With up to 7 images per second, the DFM 27UJ003-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 27UJ003-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 11 | 3856 | 2764 | 7 | 1/2.3ʺ | 1.67 | 1.67 | GigE-PoE | CMOS | Rolling | 8,10,12 | The Imaging Source | 30x30x10 | Download | Aptina | MT9J003 | Board | No | M12x0.5 | 4.5-5.5v | -5° to 45°C | 15g | ~1.25W | Mono | b: 1/2" ~ 8mm | a: ~10 | f: 7.5-12.5 | |||
| DFM 61BUC02-ML | The Imaging Source DFM 61BUC02-ML color camera has a USB 2.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2 inch Micron CMOS MT9T031 sensor. With up to 10 images per second, the DFM 61BUC02-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 61BUC02-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. | Cameras | Board Cameras | Area | 3 | 2048 | 1536 | 10 | 1/2ʺ | 3.2 | 3.2 | GigE-PoE | CMOS | Global | 8 | The Imaging Source | 45x45x25 | Download | Micron | MT9T031 | Board | No | M12x0.5 | 4.5-5.5v | -5° to 45°C | 20g | ~1.25W | Mono | b: 1/2" ~ 8mm | a: ~10 | d: 2.5-4.5 | |||
| DMM 21AF04-ML | The Imaging Source DMM 21AF04-ML monochrome camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/4 inch Sony CCD ICX098BL sensor. With up to 60 images per second, the DMM 21AF04-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 21AF04-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/4ʺ | 5.6 | 5.6 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX098 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Mono | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | |||
| DMM 21BF04-ML | The Imaging Source DMM 21BF04-ML monochrome camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/4 inch Sony CCD ICX098BL sensor. With up to 60 images per second, the DMM 21BF04-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 21BF04-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/4ʺ | 5.6 | 5.6 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX098 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Mono | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | |||
| DMM 31AF03-ML | The Imaging Source DMM 31AF03-ML monochrome camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/3 inch Sony CCD ICX204AL sensor. With up to 30 images per second, the DMM 31AF03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 31AF03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.79 | 1024 | 768 | 30 | 1/3ʺ | 4.65 | 4.65 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX204 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Mono | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | |||
| DMM 31BF03-ML | The Imaging Source DMM 31BF03-ML monochrome camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/3 inch Sony CCD ICX204AL sensor. With up to 30 images per second, the DMM 31BF03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMM 31BF03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.79 | 1024 | 768 | 30 | 1/3ʺ | 4.65 | 4.65 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX204 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Mono | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | |||
| DFM 21AF04-ML | The Imaging Source DFM 21AF04-ML color camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/4 inch Sony CCD ICX098BQ sensor. With up to 60 images per second, the DFM 21AF04-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 21AF04-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/4ʺ | 5.6 | 5.6 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX098 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Color | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | |||
| DFM 21BF04-ML | The Imaging Source DFM 21BF04-ML color camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/4 inch Sony CCD ICX098BQ sensor. With up to 60 images per second, the DFM 21BF04-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 21BF04-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.31 | 640 | 480 | 60 | 1/4ʺ | 5.6 | 5.6 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX098 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Color | a: 1/3" ~ 6mm | d: 36~100 | a: 0-0.75 | |||
| DFM 31AF03-ML | The Imaging Source DFM 31AF03-ML color camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/3 inch Sony CCD ICX204AK sensor. With up to 30 images per second, the DFM 31AF03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 31AF03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.79 | 1024 | 768 | 30 | 1/3ʺ | 4.65 | 4.65 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX204 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Color | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | |||
| DFM 31BF03-ML | The Imaging Source DFM 31BF03-ML color camera has a FireWire 400 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/3 inch Sony CCD ICX204AK sensor. With up to 30 images per second, the DFM 31BF03-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses. The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 31BF03-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub. | Cameras | Board Cameras | Area | 0.79 | 1024 | 768 | 30 | 1/3ʺ | 4.65 | 4.65 | GigE-PoE | CCD | Global | 8 | The Imaging Source | 50x50x56 | Download | Sony | ICX204 | Board | No | M12x0.5 | 8-30v | -5° to 45°C | 165g | ~0.25W | Color | a: 1/3" ~ 6mm | c: 25~35 | b: 0.75-1.5 | |||
| DMM 27UR0135-ML | Cameras | Board Cameras | Area | 1.2 | 1280 | 960 | 60 | 1/3ʺ | 3.75 | 3.75 | USB 3.0 | CMOS | Global | 8,12 | The Imaging Source | 30x30x10 | Download | On Semiconductor | AR0135 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 15g | ~1.25W | Mono | a: 1/3" ~ 6mm | d: 36~100 | b: 0.75-1.5 | ||||
| DFM 27UR0135-ML | Cameras | Board Cameras | Area | 1.2 | 1280 | 960 | 60 | 1/3ʺ | 3.75 | 3.75 | USB 3.0 | CMOS | Global | 8,12 | The Imaging Source | 30x30x10 | Download | On Semiconductor | AR0135 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 15g | ~1.25W | Color | a: 1/3" ~ 6mm | d: 36~100 | b: 0.75-1.5 | ||||
| DMM 37UX287-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 539 | 1/2.9ʺ | 6.9 | 6.9 | USB3.1 | CMOS | Global | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX287 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~3.75W | Mono | b: 1/2" ~ 8mm | f: 201~750 | a: 0-0.75 | |||
| DMM 37UX273-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 236 | 1/2.9ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX273 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~3.75W | Mono | b: 1/2" ~ 8mm | f: 201~750 | c: 1.5-2.5 | |||
| DMM 37UX178-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 6.3 | 3072 | 2048 | 60 | 1/1.8ʺ | 2.4 | 2.4 | USB3.1 | CMOS | Rolling | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX178 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.6W | Mono | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| DFM 37UX287-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 539 | 1/2.9ʺ | 6.9 | 6.9 | USB3.1 | CMOS | Global | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX287 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.9W | Color | b: 1/2" ~ 8mm | f: 201~750 | a: 0-0.75 | |||
| DFM 37UX273-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 236 | 1/2.9ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX273 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.9W | Color | b: 1/2" ~ 8mm | f: 201~750 | c: 1.5-2.5 | |||
| DFM 37UX178-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 6.3 | 3072 | 2048 | 60 | 1/1.8ʺ | 2.4 | 2.4 | USB3.1 | CMOS | Rolling | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX178 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.6W | Color | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| DMM 37UX290-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 2 | 1920 | 1080 | 90 | 1/2.8ʺ | 2.9 | 2.9 | USB3.1 | CMOS | Rolling | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX290 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~3.75W | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||
| DFM 37UX290-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 2 | 1920 | 1080 | 90 | 1/2.8ʺ | 2.9 | 2.9 | USB3.1 | CMOS | Rolling | 8,12 | The Imaging Source | 30x30x15 | Download | Sony | IMX290 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.3W | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||
| DFM 37UX265-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 3.1 | 2048 | 1536 | 60 | 1/1.8ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 30x30x15 | Download | Sony | IMX265LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.8W | Color | c: 2/3" ~11mm | d: 36~100 | d: 2.5-4.5 | |||
| DFM 37UX252-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 3.1 | 2048 | 1536 | 119 | 1/1.8ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX252LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~2.1W | Color | c: 2/3" ~11mm | e: 101~200 | d: 2.5-4.5 | |||
| DFM 37UX264-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 5 | 2448 | 2048 | 38 | 2/3ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX264LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.8W | Color | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| DFM 37UX250-ML | The Imaging Source USB 3.1 (gen. 1) color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 5 | 2448 | 2048 | 75 | 2/3ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX250LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~2.05W | Color | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| MIPI CSI-2 | Features
End-user software
|
Cameras | Board Cameras | Board Cameras | MIPI | The Imaging Source | Download | Sony | IMX219 | |||||||||||||||||||||||||
| DMM 37UX265-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 3.1 | 2048 | 1536 | 60 | 1/1.8ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 30x30x15 | Download | Sony | IMX265LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.8W | Mono | c: 2/3" ~11mm | d: 36~100 | d: 2.5-4.5 | |||
| DMM 37UX252-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 3.1 | 2048 | 1536 | 119 | 1/1.8ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX252LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~2.1W | Mono | c: 2/3" ~11mm | e: 101~200 | d: 2.5-4.5 | |||
| DMM 37UX264-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 5 | 2448 | 2048 | 38 | 2/3ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX264LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.8W | Mono | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| DMM 37UX250-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 5 | 2448 | 2048 | 75 | 2/3ʺ | 3.45 | 3.45 | USB3.1 | CMOS | Global | 12 | The Imaging Source | 36x36x15 | Download | Sony | IMX250LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~2.05W | Mono | c: 2/3" ~11mm | d: 36~100 | e: 4.5-7.5 | |||
| DMM 37UX226-ML | The Imaging Source USB 3.1 (gen. 1) monochrome board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 12 | 4000 | 3000 | 30 | 1/1.7ʺ | 1.85 | 1.85 | USB3.1 | CMOS | Rolling | 8,12,16 | The Imaging Source | 30x30x15 | Sony | IMX226CLJ | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.6W | Mono | c: 2/3" ~11mm | c: 25~35 | f: 7.5-12.5 | ||||
| DMM 36CX297-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 120 | 1/2.9ʺ | 6.9 | 6.9 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX297 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | e: 101~200 | a: 0-0.75 | |||||||
| DMM 36CX296-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 60 | 1/2.9ʺ | 3.45 | 3.45 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX296 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36CX290-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX290 | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36CR0234-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 100 | 1/2.6ʺ | 3 | 3 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | On Semiconductor | AR0234CS | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36CX335-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 30 | 1/2.8ʺ | 2 | 2 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX335 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | c: 25~35 | e: 4.5-7.5 | |||||||
| DFM 36CX297-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 120 | 1/2.9ʺ | 6.9 | 6.9 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX297 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | e: 101~200 | a: 0-0.75 | |||||||
| DFM 36CX296-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 60 | 1/2.9ʺ | 3.45 | 3.45 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX296 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36CX290-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX290 | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36CR0234-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 100 | 1/2.6ʺ | 3 | 3 | FPD-Link | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | On Semiconductor | AR0234CS | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36CX335-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 30 | 1/2.8ʺ | 2 | 2 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX335 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | c: 25~35 | e: 4.5-7.5 | |||||||
| DMM 36MX297-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 120 | 1/2.9ʺ | 6.9 | 6.9 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX297 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | e: 101~200 | a: 0-0.75 | |||||||
| DMM 36MX296-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 60 | 1/2.9ʺ | 3.45 | 3.45 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX296 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36MX290-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX290 | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36MR0234-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 100 | 1/2.6ʺ | 3 | 3 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | On Semiconductor | AR0234CS | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36MX335-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 30 | 1/2.8ʺ | 2 | 2 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX335 | Board | No | M12x0.5 | -5° to 45°C | Mono | a: 1/3" ~ 6mm | c: 25~35 | f: 7.5-12.5 | |||||||
| DFM 36MX297-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 120 | 1/2.9ʺ | 6.9 | 6.9 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX297 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | e: 101~200 | a: 0-0.75 | |||||||
| DFM 36MX296-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 60 | 1/2.9ʺ | 3.45 | 3.45 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | Sony | IMX296 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36MX290-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX290 | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36MR0234-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 100 | 1/2.6ʺ | 3 | 3 | MIPI | CMOS | Global | 10 | The Imaging Source | 30x30x27.5 | On Semiconductor | AR0234CS | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DFM 36MX335-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 30 | 1/2.8ʺ | 2 | 2 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX335 | Board | No | M12x0.5 | -5° to 45°C | Color | a: 1/3" ~ 6mm | c: 25~35 | e: 4.5-7.5 | |||||||
| DFM 36AX462-ML | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | CMOS | Rolling | 12 | The Imaging Source | 30x30x12 | Sony | IMX462 | Board | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DFM 36AX390-ML | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.7ʺ | 3 | 3 | CMOS | Rolling | 12 | The Imaging Source | 30x30x12 | Sony | IMX390 | Board | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DFM 36AR0234-ML | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 60 | 1/2.6ʺ | 3 | 3 | CMOS | Global | 12 | The Imaging Source | 30x30x12 | OnSemi | AR0234 | Board | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DFM 36AX335-ML | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 30 | 1/2.8ʺ | 2 | 2 | CMOS | Rolling | 12 | The Imaging Source | 30x30x12 | Sony | IMX335 | Board | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | c: 25~35 | e: 4.5-7.5 | ||||||||||
| DMM 36AX297-ML | Cameras | Board Cameras | Area | 0.4 | 720 | 540 | 120 | 1/2.9ʺ | 6.9 | 6.9 | CMOS | Global | 12 | The Imaging Source | 30x30x12 | Sony | IMX297 | Board | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | e: 101~200 | a: 0-0.75 | ||||||||||
| DMM 36AX296-ML | Cameras | Board Cameras | Area | 1.6 | 1440 | 1080 | 60 | 1/2.9ʺ | 3.45 | 3.45 | CMOS | Global | 12 | The Imaging Source | 30x30x12 | Sony | IMX296 | Board | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DMM 36AX290-ML | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 3.3 | 3.3 | CMOS | Rolling | 12 | The Imaging Source | 30x30x12 | Sony | IMX290 | Board | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DMM 36AX335-ML | Cameras | Board Cameras | Area | 5 | 2592 | 1944 | 60 | 1/2.8ʺ | 3 | 3 | CMOS | Rolling | 12 | The Imaging Source | 30x30x12 | Sony | IMX335 | Board | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | e: 4.5-7.5 | ||||||||||
| DMM 36AR0234-ML | Cameras | Board Cameras | Area | 2.3 | 1920 | 1200 | 60 | 1/2.6ʺ | 3 | 3 | CMOS | Global | 12 | The Imaging Source | 30x30x12 | OnSemi | AR0234 | Board | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | ||||||||||
| DFM 37UX462-ML | Cameras | Area | Area | 2.1 | 1920 | 1080 | 144 | 1/2.8ʺ | 2.9 | 2.9 | USB3.1 | CMOS | Rolling | 10 | The Imaging Source | 30x30x15 | Sony | IMX462 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | Color | b: 1/2" ~ 8mm | e: 101~200 | c: 1.5-2.5 | ||||||
| DFM 36MX462-ML | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 120 | 1/2.8ʺ | 2.9 | 2.9 | MIPI | CMOS | Rolling | 12 | The Imaging Source | Sony | IMX462LQR | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 4g | Color | b: 1/2" ~ 8mm | e: 101~200 | c: 1.5-2.5 | |||||||
| DFM 36CX462-ML | Cameras | Board Cameras | Area | 2.1 | 1920 | 1080 | 60 | 1/2.8ʺ | 2.9 | 2.9 | MIPI | CMOS | Rolling | 12 | The Imaging Source | Sony | IMX462 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 12g | Color | b: 1/2" ~ 8mm | d: 36~100 | c: 1.5-2.5 | |||||||
| DMM 36CX415-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 8.3 | 3840 | 2160 | 30 | 1/2.8ʺ | 1.45 | 1.45 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX415 | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | c: 25~35 | f: 7.5-12.5 | |||||||
| DFM 36CX415-ML | The Imaging Source offers high-performance board cameras with FPD-Link III (SerDes cameras) for embedded vision applications requiring long cable distances between sensor and platform. The cameras are ideal for plug-and-play integration with The Imaging Source's embedded development kits for NVIDIA® Jetson™ platforms and Raspberry Pi. The Imaging Source's specially developed MIPI deserializer boards give system engineers maximum flexibility in connecting sensor modules to the desired target platform. The Imaging Source's FPD-Link III board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses. The included software allows for adjustment of parameters such as gain, exposure, frame rate, and white balance. Select models are available with a choice of input, output, strobe, and trigger options. |
Cameras | Board Cameras | Area | 8.3 | 3840 | 2160 | 30 | 1/2.8ʺ | 1.45 | 1.45 | FPD-Link | CMOS | Rolling | 12 | The Imaging Source | 30x30x27.5 | Sony | IMX415 | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | c: 25~35 | f: 7.5-12.5 | |||||||
| DMM 36MX415-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 8.3 | 3840 | 2160 | 30 | 1/2.8ʺ | 1.45 | 1.45 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x5.45 | Sony | IMX415 | Board | No | M12x0.5 | -5° to 45°C | Mono | b: 1/2" ~ 8mm | c: 25~35 | f: 7.5-12.5 | |||||||
| DFM 36MX415-ML | The Imaging Source offers a wide range of high-performance MIPI CSI-2 sensor modules for embedded vision applications. These image sensor modules use The Imaging Source's 28-pin interface, ensuring stable, broadband transmission of image data. The Imaging Source MIPI CSI-2 sensor modules feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS-mount lenses: | Cameras | Board Cameras | Area | 8.3 | 3840 | 2160 | 30 | 1/2.8ʺ | 1.45 | 1.45 | MIPI | CMOS | Rolling | 12 | The Imaging Source | 30x30x5.45 | Sony | IMX415 | Board | No | M12x0.5 | -5° to 45°C | Color | b: 1/2" ~ 8mm | c: 25~35 | f: 7.5-12.5 | |||||||
| DFM 37UX226-ML | The Imaging Source USB 3.1 color board cameras combine the latest Sony Pregius and STARVIS CMOS sensor technology with the USB 3.1 reversible Type-C port connection to provide exceptional image quality and easy integration. These single-board cameras measure only 30 x 30 x 12 mm and offer maximum flexibility for a wide range of space-limited applications such as industrial automation, quality control, surveillance and medicine. The included software allows for the adjustment of gain, exposure, frame rate and white balance. Specific models are available with a variety of input, output, strobe and trigger options. |
Cameras | Board Cameras | Area | 12 | 4000 | 3000 | 30 | 1/1.7 | 1.85 | 1.85 | USB3.1 | CMOS | Rolling | 12 | The Imaging Source | 30x30x15 | Sony | IMX226 | Board | No | C/CS | 4.75-5.25 | -5° to 45°C | 7g | ~1.9W | Download | Color | b: 1/2" ~ 8mm | c: 25~35 | a: 0-0.75 |
