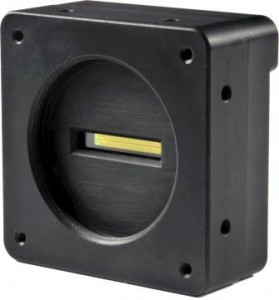

UNiiQA+ESCMR

e2v’s UNiiQA+ line scan cameras family has been specifically designed to overcome the limitations of your current inspection system: make cost savings, improve your throughput, inspect larger areas or identify smaller defects. Three UNiiQA+ product ranges are offered: * UNiiQA+ Essential: low speed cameras for cost effective equipment or with modest speed requirement * UNiiQA+ High-Speed: high speed cameras to help improve the performance of your system The UNiiQA+ family has also been designed to be highly modular to enable engineers to reuse the same camera in multiple equipment, simplify logistics and reduce development cycle time. All UNiiQA+ cameras feature e2v’s proprietary CMOS sensors : a single line of highly sensitive pixels of either 5µm or 10µm size.

PRODUCT NAME UNiiQA+ESCMR

CATEGORY Cameras

SUB CATEGORY Line

Camera Type Line

Width [Pixel] 4096

Height [Pixel] 2

Pixel W[µm] 10

Pixel H[µm] 10

Interface GigE

Sensor Type CMOS

Shutter Type Global

Bit_Depth 8

MANUFACTURER E2v

Size 60x60x33.65

Datasheet Download

Sensor Manufacturer E2v

Sensor Model E2v

Type Housed

Auto Iris No

Mount M42x1, F, C

Voltage 10-15v

Temp. Range 0° to 55°C

Weight[g] 150g

Power 4W

Line Rate [Kline/s] 20/40

USERMANUAL Download

ColorMono Mono

Discontinued Product Yes
