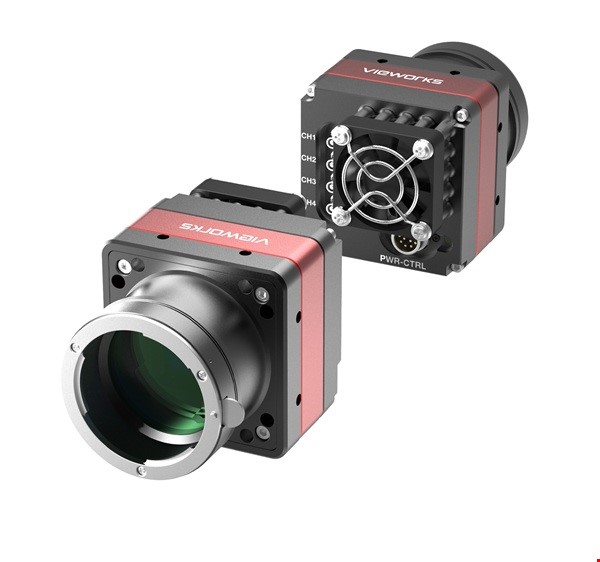

VCS-14MX2-M340I

The VCS-14MX2-M/C340I is a high-speed CMOS industrial camera designed for applications requiring both speed and precision. It captures images at a resolution of 4608 × 3072 pixels (14 megapixels) and delivers up to 338 frames per second when operated with four CoaXPress 2.0 channels, supporting a maximum data throughput of 50 Gbps.

Equipped with a back-side illuminated GSPRINT5514 CMOS sensor, the camera achieves excellent sensitivity and uniform image quality even at high frame rates. The global shutter architecture ensures distortion-free capture of fast-moving objects, making the camera highly effective for demanding inspection and imaging environments.

The VCS-14MX2-M/C340I offers flexible connectivity through the CoaXPress 2.0 interface and supports free-run, hardware, and software trigger modes. Power can be supplied via an external 11–24 VDC input or through Power over CoaXPress (PoCXP). With compact dimensions of 68 × 68 × 109 mm (fan model) or 112.5 mm (heat sink model) and an F-mount lens interface, the camera is designed for seamless integration into industrial inspection systems, including flat panel display, PCB, semiconductor, and scientific imaging applications.
